Gho, JMIH;
van Es, R;
van Slochteren, FJ;
Jansen Of Lorkeers, SJ;
Hauer, AJ;
van Oorschot, JWM;
Doevendans, PA;
... Chamuleau, SAJ; + view all
(2017)

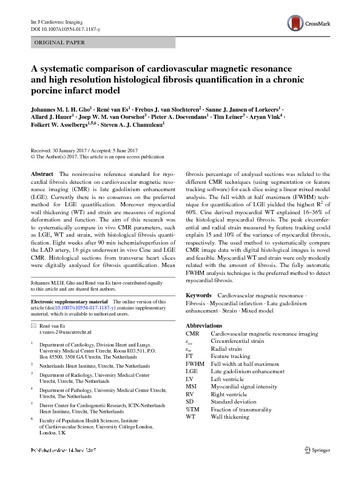

A systematic comparison of cardiovascular magnetic resonance and high resolution histological fibrosis quantification in a chronic porcine infarct model.
International Journal of Cardiovascular Imaging
10.1007/s10554-017-1187-y.
(In press).
Preview |
Text
10.1007_s10554-017-1187-y.pdf - Published Version Download (4MB) | Preview |
Abstract
The noninvasive reference standard for myocardial fibrosis detection on cardiovascular magnetic resonance imaging (CMR) is late gadolinium enhancement (LGE). Currently there is no consensus on the preferred method for LGE quantification. Moreover myocardial wall thickening (WT) and strain are measures of regional deformation and function. The aim of this research was to systematically compare in vivo CMR parameters, such as LGE, WT and strain, with histological fibrosis quantification. Eight weeks after 90 min ischemia/reperfusion of the LAD artery, 16 pigs underwent in vivo Cine and LGE CMR. Histological sections from transverse heart slices were digitally analysed for fibrosis quantification. Mean fibrosis percentage of analysed sections was related to the different CMR techniques (using segmentation or feature tracking software) for each slice using a linear mixed model analysis. The full width at half maximum (FWHM) technique for quantification of LGE yielded the highest R2 of 60%. Cine derived myocardial WT explained 16–36% of the histological myocardial fibrosis. The peak circumferential and radial strain measured by feature tracking could explain 15 and 10% of the variance of myocardial fibrosis, respectively. The used method to systematically compare CMR image data with digital histological images is novel and feasible. Myocardial WT and strain were only modestly related with the amount of fibrosis. The fully automatic FWHM analysis technique is the preferred method to detect myocardial fibrosis.
| Type: | Article |
|---|---|
| Title: | A systematic comparison of cardiovascular magnetic resonance and high resolution histological fibrosis quantification in a chronic porcine infarct model |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1007/s10554-017-1187-y |
| Publisher version: | http://dx.doi.org/10.1007/s10554-017-1187-y |
| Language: | English |
| Additional information: | © The Author(s) 2017. This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. |
| Keywords: | Cardiovascular magnetic resonance, Fibrosis, Myocardial infarction, Late gadolinium enhancement, Strain, Mixed model |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Population Health Sciences > Institute of Health Informatics |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10026093 |
