Tran, H;
Cunha, AV;
Shephard, JJ;
Shalit, A;
Hamm, P;
Jansen, TLC;
Salzmann, CG;
(2017)
2D IR spectroscopy of high-pressure phases of ice.
Journal of Chemical Physics
, 147
(14)
, Article 144501. 10.1063/1.4993952.
Preview |
Text

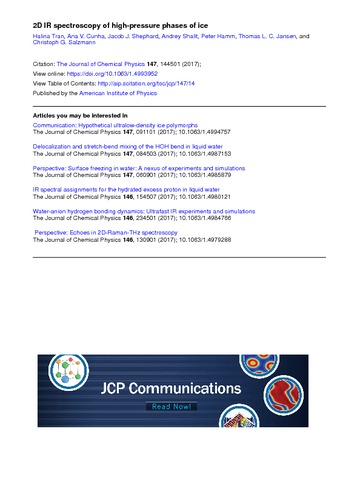

1.4993952.pdf - Published Version Download (3MB) | Preview |
Abstract
We present experimental and simulated 2D IR spectra of some high-pressure forms of isotope-pure D 2 O ice and compare the results to those of ice Ih published previously [F. Perakis and P. Hamm, Phys. Chem. Chem. Phys. 14, 6250 (2012); L. Shi et al., ibid. 18, 3772 (2016)]. Ice II, ice V, and ice XIII have been chosen for this study, since this selection covers many aspects of the polymorphism of ice. That is, ice II is a hydrogen-ordered phase of ice, in contrast to ice Ih, while ice V and ice XIII are a hydrogen-disordered/ordered couple that shares essentially the same oxygen structure and hydrogen-bonded network. For the transmission 2D IR spectroscopy, a novel method had to be developed for the preparation of ultrathin films (1-2 μm) of high-pressure ices with good optical quality. We also simulated 2D IR spectra based on molecular dynamics simulations connected to a vibrational exciton picture. These simulations agree with the experimental results in a semi-quantitative manner for ice II, while the same approach failed for ice V and ice XIII. From the perspective of 2D IR spectroscopy, ice II appears to be more inhomogeneously broadened than ice Ih, despite its hydrogen-order, which we attribute to the fact that ice II is structurally more complex with four distinguishable hydrogen bonds that mix due to exciton coupling. Ice V and ice XIII, on the other hand, behave as expected with the hydrogen-disordered case (ice V) being more inhomogenously broadened. Furthermore, in all hydrogen-ordered forms (ice II and ice XIII), cross peaks could be identified in the anisotropic 2D IR spectrum, whose signs reveal the relative direction of the corresponding excitonic states.
| Type: | Article |
|---|---|
| Title: | 2D IR spectroscopy of high-pressure phases of ice |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1063/1.4993952 |
| Publisher version: | http://doi.org/10.1063/1.4993952 |
| Language: | English |
| Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Chemistry |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10027856 |
