Personalisation of warfarin therapy using thermal ink-jet printing

Vuddanda, PR; Alomari, M; Dodoo, CC; Trenfield, SJ; Velaga, S; Basit, AW; Gaisford, S; (2018) Personalisation of warfarin therapy using thermal ink-jet printing. European Journal of Pharmaceutical Sciences , 117 pp. 80-87. 10.1016/j.ejps.2018.02.002. Green open access

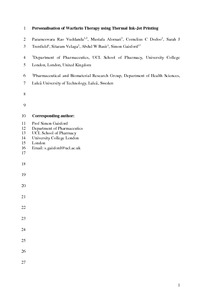

[thumbnail of Basit_Personalising Warfarin Therapy .pdf]
Preview
Text
Basit_Personalising Warfarin Therapy .pdf - Accepted Version

Download (834kB) | Preview

Abstract

Warfarin is a widely used anticoagulant that is critical in reducing patient morbidity and mortality associated with thromboembolic disorders. However, its narrow therapeutic index and large inter-individual variability can lead to complex dosage regimes. Formulating warfarin as an orodispersible film (ODF) using thermal ink-jet (TIJ) printing could enable personalisation of therapy to simplify administration. Commercial TIJ printers are currently unsuitable for printing the milligram dosages, typically required for warfarin therapy. As such, this study aimed to modify a commercial TIJ printing system to formulate personalised warfarin ODFs containing therapeutic dosages. A TIJ printer was modified successfully with the printer functionality intact; the substrate (paper) rolling mechanism of the printer was replaced by printing onto a stationary stage. Free film substrates were composed of hydroxypropyl methylcellulose (20%w/w) and glycerol (3%w/w). The resulting ODFs were characterised for morphology, disintegration, solid-state properties and drug content. Printed film stability was assessed at 40 °C/75% relative humidity for 30 days. Therapeutic warfarin doses (1.25 and 2.5 mg) were successfully printed onto the film substrates. Excellent linearity was observed between the theoretical and measured dose by changing the warfarin feed concentration (R2 = 0.9999) and length of the print objective, i.e. the Y-value, (R2 = 0.9998). Rapid disintegration of the ODFs was achieved. As such, this study successfully formulated personalised warfarin ODFs using a modified TIJ printer, widening the range of applications for TIJ printing to formulate narrow therapeutic index drugs.

Type: Article
Title: Personalisation of warfarin therapy using thermal ink-jet printing
Location: Netherlands
Open access status: An open access version is available from UCL Discovery
DOI: 10.1016/j.ejps.2018.02.002
Publisher version: http://dx.doi.org/10.1016/j.ejps.2018.02.002
Language: English
Additional information: This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: Hydroxypropyl methylcellulose, Orodispersible films, Personalised medicine, Thermal ink-jet printing, Warfarin
