Paik, J;
(2018)
Three-Dimensional Thermo-Elastic-Plastic Finite Element Method Modeling for Predicting Weld-Induced Residual Stresses and Distortions in Steel Stiffened-Plate Structures.
World Journal of Engineering and Technology
, 6
pp. 176-200.
10.4236/wjet.2018.61010.
Preview |
Text

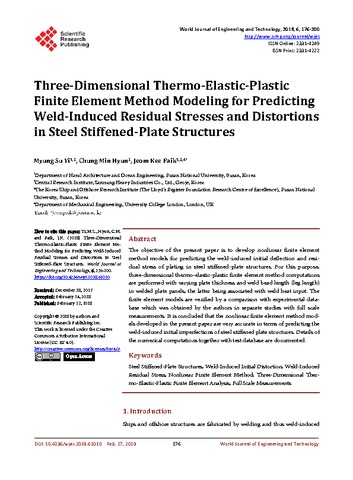

WJET_2018022615444301.pd.pdf - Published Version Download (7MB) | Preview |
Abstract
The objective of the present paper is to develop nonlinear finite element method models for predicting the weld-induced initial deflection and residual stress of plating in steel stiffened-plate structures. For this purpose, three-dimensional thermo-elastic-plastic finite element method computations are performed with varying plate thickness and weld bead length (leg length) in welded plate panels, the latter being associated with weld heat input. The finite element models are verified by a comparison with experimental database which was obtained by the authors in separate studies with full scale measurements. It is concluded that the nonlinear finite element method models developed in the present paper are very accurate in terms of predicting the weld-induced initial imperfections of steel stiffened plate structures. Details of the numerical computations together with test database are documented.
| Type: | Article |
|---|---|
| Title: | Three-Dimensional Thermo-Elastic-Plastic Finite Element Method Modeling for Predicting Weld-Induced Residual Stresses and Distortions in Steel Stiffened-Plate Structures |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.4236/wjet.2018.61010 |
| Publisher version: | https://doi.org/10.4236/wjet.2018.61010 |
| Language: | English |
| Additional information: | Copyright © 2018 by authors and Scientific Research Publishing Inc. This work is licensed under the Creative Commons Attribution International License (CC BY 4.0). http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Steel Stiffened-Plate Structures, Weld-Induced Initial Distortion, Weld-Induced Residual Stress, Nonlinear Finite Element Method, Three-Dimensional Thermo-Elastic-Plastic Finite Element Analysis, Full Scale Measurements |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10046141 |
