Boem, F;
Riverso, S;
Ferrari-Trecate, G;
Parisini, T;
(2019)
Plug-and-Play Fault Detection and Isolation for Large-Scale Nonlinear Systems with Stochastic Uncertainties.
IEEE Transactions on Automatic Control
, 64
(1)
pp. 4-19.
10.1109/TAC.2018.2811469.
Preview |
Text

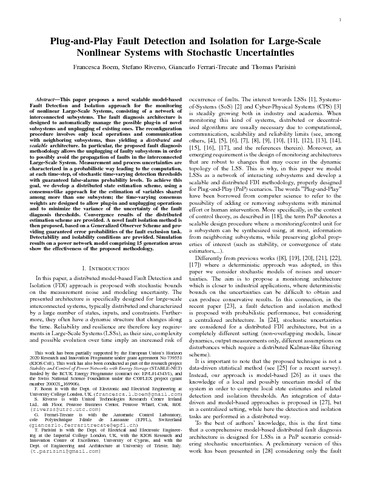

IEEE-TAC 17-1071_Final_To_Publisher.pdf - Accepted Version Download (489kB) | Preview |
Abstract
This paper proposes a novel scalable model-based Fault Detection and Isolation approach for the monitoring of nonlinear Large-Scale Systems, consisting of a network of interconnected subsystems. The fault diagnosis architecture is designed to automatically manage the possible plug-in of novel subsystems and unplugging of existing ones. The reconfiguration procedure involves only local operations and communication with neighboring subsystems, thus yielding a distributed and scalable architecture. In particular, the proposed fault diagnosis methodology allows the unplugging of faulty subsystems in order to possibly avoid the propagation of faults in the interconnected Large-Scale System. Measurement and process uncertainties are characterized in a probabilistic way leading to the computation, at each time-step, of stochastic time-varying detection thresholds with guaranteed false-alarms probability levels. To achieve this goal, we develop a distributed state estimation scheme, using a consensus-like approach for the estimation of variables shared among more than one subsystem; the time-varying consensus weights are designed to allow plug-in and unplugging operations and to minimize the variance of the uncertainty of the fault diagnosis thresholds. Convergence results of the distributed estimation scheme are provided. A novel fault isolation method is then proposed, based on a Generalized Observer Scheme and providing guaranteed error probabilities of the fault exclusion task. Detectability and isolability conditions are provided. Simulation results on a power network model comprising 15 generation areas show the effectiveness of the proposed methodology.
| Type: | Article |
|---|---|
| Title: | Plug-and-Play Fault Detection and Isolation for Large-Scale Nonlinear Systems with Stochastic Uncertainties |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/TAC.2018.2811469 |
| Publisher version: | http://dx.doi.org/10.1109/TAC.2018.2811469 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10046398 |
