Ramirez, J; Orini, M; Tucker, JD; Pueyo, E; Laguna, P; (2016) An Index for T-wave Pointwise Amplitude Variability Quantification. In: Murray, A, (ed.) Computing in Cardiology 2016. (pp. pp. 49-52). Computing in Cardiology: Vancouver, Canada.

Preview

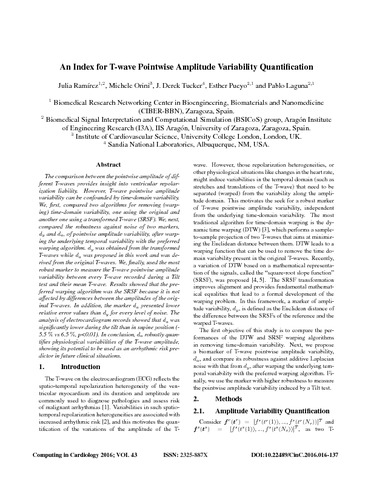

Text 016-137.pdf - Published Version Download (455kB) | Preview

Abstract

The comparison between the pointwise amplitude of different T-waves provides insight into ventricular repolarization liability. However, T-wave pointwise amplitude variability can be confounded by time-domain variability. We, first, compared two algorithms for removing (warping) time-domain variability, one using the original and another one using a transformed T-wave (SRSF). We, next, compared the robustness against noise of two markers, dy and da, of pointwise amplitude variability, after warping the underlying temporal variability with the preferred warping algorithm. dy was obtained from the transformed T-waves while da was proposed in this work and was derived from the original T-waves. We, finally, used the most robust marker to measure the T-wave pointwise amplitude variability between every T-wave recorded during a Tilt test and their mean T-wave. Results showed that the preferred warping algorithm was the SRSF because it is not affected by differences between the amplitudes of the original T-waves. In addition, the marker da presented lower relative error values than dy for every level of noise. The analysis of electrocardiogram records showed that da was significantly lower during the tilt than in supine position (- 5.5 % vs 6.5 %, p<0.01). In conclusion, da robustly quantifies physiological variabilities of the T-wave amplitude, showing its potential to be used as an arrhythmic risk predictor in future clinical situations.
