Chernetskiy, M;
Gobron, N;
Gomez-Dans, J;
Morgan, O;
Disney, M;
Lewis, P;
Schmullius, C;
(2018)
Simulating arbitrary hyperspectral bandsets from multispectral observations via a generic Earth Observation-Land Data Assimilation System (EO-LDAS).
Advances in Space Research
, 62
(7)
pp. 1654-1674.
10.1016/j.asr.2018.07.015.
Preview |
Text

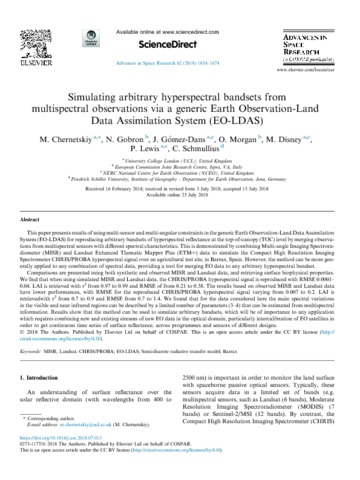

Chernetskiy_Chernetskiy_1-s2.0-S0273117718305775-main (1).pdf - Published Version Download (7MB) | Preview |
Abstract
This paper presents results of using multi-sensor and multi-angular constraints in the generic Earth Observation-Land Data Assimilation System (EO-LDAS) for reproducing arbitrary bandsets of hyperspectral reflectance at the top-of-canopy (TOC) level by merging observations from multispectral sensors with different spectral characteristics. This is demonstrated by combining Multi-angle Imaging Spectroradiometer (MISR) and Landsat Enhanced Thematic Mapper Plus (ETM+) data to simulate the Compact High Resolution Imaging Spectrometer CHRIS/PROBA hyperspectral signal over an agricultural test site, in Barrax, Spain. However, the method can be more generally applied to any combination of spectral data, providing a tool for merging EO data to any arbitrary hyperspectral bandset. Comparisons are presented using both synthetic and observed MISR and Landsat data, and retrieving surface biophysical properties. We find that when using simulated MISR and Landsat data, the CHRIS/PROBA hyperspectral signal is reproduced with RMSE 0.0001 - 0.04. LAI is retrieved with r2 from 0.97 to 0.99 and RMSE of from 0.21 to 0.38. The results based on observed MISR and Landsat data have lower performances, with RMSE for the reproduced CHRIS/PROBA hyperspectral signal varying from 0.007 to 0.2. LAI is retrievedwith r2 from 0.7 to 0.9 and RMSE from 0.7 to 1.4. We found that for the data considered here the main spectral variations in the visible and near infrared regions can be described by a limited number of parameters (3-4) that can be estimated from multispectral information. Results show that the method can be used to simulate arbitrary bandsets, which will be of importance to any application which requires combining new and existing streams of new EO data in the optical domain, particularly intercalibration of EO satellites in order to get continuous time series of surface reflectance, across programmes and sensors of different designs.
| Type: | Article |
|---|---|
| Title: | Simulating arbitrary hyperspectral bandsets from multispectral observations via a generic Earth Observation-Land Data Assimilation System (EO-LDAS) |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.asr.2018.07.015 |
| Publisher version: | https://doi.org/10.1016/j.asr.2018.07.015 |
| Language: | English |
| Additional information: | This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. |
| Keywords: | MISR; Landsat; CHRIS/PROBA; EO-LDAS; Semi-discrete radiative transfer model; Barrax. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Space and Climate Physics UCL > Provost and Vice Provost Offices > UCL SLASH UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS > Dept of Geography |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10052817 |
