Schormans, M;
Valente, V;
Demosthenous, A;
(2018)
Single-pulse harmonic modulation for short range biomedical inductive data transfer.
In:
Proccedings of the 2017 IEEE Biomedical Circuits and Systems Conference (BioCAS).
(pp. pp. 1-4).
Institute of Electrical and Electronics Engineers (IEEE): Piscataway (NJ), USA.
Preview |
Text

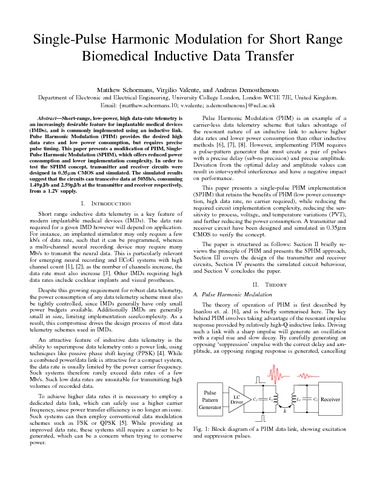

Schormans_Single-pulse harmonic modulation for short range biomedical inductive data transfer_AAM.pdf - Accepted Version Download (438kB) | Preview |
Abstract
Short-range, low-power, high data-rate telemetry is an increasingly desirable feature for implantable medical devices (IMDs), and is commonly implemented using an inductive link. Pulse Harmonic Modulation (PHM) provides the desired high data rates and low power consumption, but requires precise pulse timing. This paper presents a modification of PHM, Single-Pulse Harmonic Modulation (SPHM), which offers reduced power consumption and lower implementation complexity. In order to test the SPHM concept, transmitter and receiver circuits were designed in 0.35μm CMOS and simulated. The simulated results suggest that the circuits can transceive data at 50Mb/s, consuming 1.49pJ/b and 2.59pJ/b at the transmitter and receiver respectively, from a 1.2V supply.
| Type: | Proceedings paper |
|---|---|
| Title: | Single-pulse harmonic modulation for short range biomedical inductive data transfer |
| Event: | BioCAS 2017 |
| ISBN-13: | 978-1-5090-5803-7 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/BIOCAS.2017.8325083 |
| Publisher version: | https://doi.org/10.1109/BIOCAS.2017.8325083 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Receivers, Transmitters, Prognostics and health management, Power demand, Delays, Switches, Telemetry |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10053622 |
