Feroci, M;
Ahangarianabhar, M;
Ambrosi, G;
Ambrosino, F;
Argan, A;
Barbera, M;
Bayer, J;
... Zhang, X; + view all
(2018)
The Large Area Detector onboard the eXTP mission.
In: den Herder, JW and Nikzad, S and Nakazawa, K, (eds.)
Space Telescopes and Instrumentation 2018: Ultraviolet to Gamma Ray.
(pp. 106991C:1-106991C:15).
Society of Photo-Optical Instrumentation Engineers (SPIE)
Preview |
Text

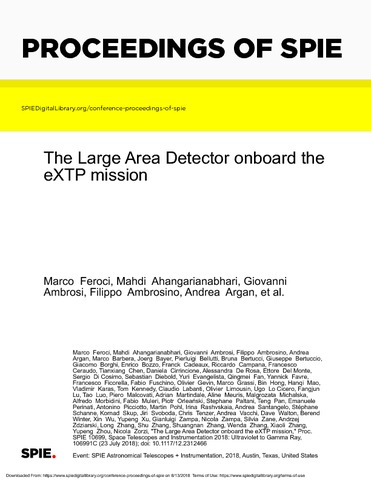

106991C.pdf - Published Version Download (1MB) | Preview |
Abstract
The eXTP (enhanced X-ray Timing and Polarimetry) mission is a major project of the Chinese Academy of Sciences (CAS) and China National Space Administration (CNSA) currently performing an extended phase A study and proposed for a launch by 2025 in a low-earth orbit. The eXTP scientific payload envisages a suite of instruments (Spectroscopy Focusing Array, Polarimetry Focusing Array, Large Area Detector and Wide Field Monitor) offering unprecedented simultaneous wide-band X-ray spectral, timing and polarimetry sensitivity. A large European consortium is contributing to the eXTP study and it is expected to provide key hardware elements, including a Large Area Detector (LAD). The LAD instrument for eXTP is based on the design originally proposed for the LOFT mission within the ESA context. The eXTP/LAD envisages a deployed 3.4 m2 effective area in the 2-30 keV energy range, achieved through the technology of the large-area Silicon Drift Detectors - offering a spectral resolution of up to 200 eV FWHM at 6 keV - and of capillary plate collimators - limiting the field of view to about 1 degree. In this paper we provide an overview of the LAD instrument design, including new elements with respect to the earlier LOFT configuration.
| Type: | Proceedings paper |
|---|---|
| Title: | The Large Area Detector onboard the eXTP mission |
| Event: | SPIE Astronomical Telescopes + Instrumentation, 10-15 June 2018, Austin, Texas, USA |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1117/12.2312466 |
| Publisher version: | https://doi.org/10.1117/12.2312466 |
| Language: | English |
| Additional information: | This is the published version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | X-ray Astronomy, Timing, Silicon detectors, capillary plates |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Space and Climate Physics |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10054207 |
