Carew, RM;
Morgan, RM;
Rando, C;
(2019)
A Preliminary Investigation into the Accuracy of 3D Modeling and 3D Printing in Forensic Anthropology Evidence Reconstruction.
Journal of Forensic Sciences
, 64
(2)
pp. 342-352.
10.1111/1556-4029.13917.
Preview |
Text

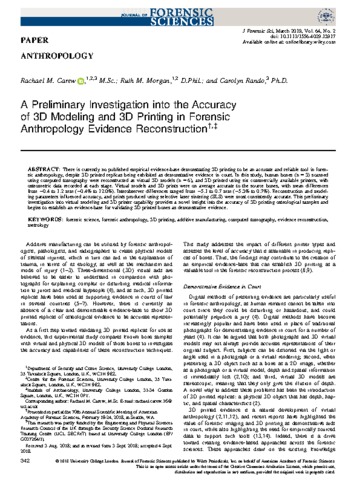

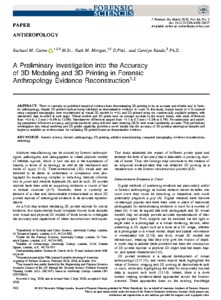

Morgan_A Preliminary Investigation into the Accuracy of 3D Modeling and 3D Printing in Forensic Anthropology Evidence Reconstruction_VoR.pdf - Published Version Download (698kB) | Preview |
Abstract
There is currently no published empirical evidence-base demonstrating 3D printing to be an accurate and reliable tool in forensic anthropology, despite 3D printed replicas being exhibited as demonstrative evidence in court. In this study, human bones (n = 3) scanned using computed tomography were reconstructed as virtual 3D models (n = 6), and 3D printed using six commercially available printers, with osteometric data recorded at each stage. Virtual models and 3D prints were on average accurate to the source bones, with mean differences from -0.4 to 1.2 mm (-0.4% to 12.0%). Interobserver differences ranged from -5.1 to 0.7 mm (-5.3% to 0.7%). Reconstruction and modeling parameters influenced accuracy, and prints produced using selective laser sintering (SLS) were most consistently accurate. This preliminary investigation into virtual modeling and 3D printer capability provides a novel insight into the accuracy of 3D printing osteological samples and begins to establish an evidence-base for validating 3D printed bones as demonstrative evidence.
| Type: | Article |
|---|---|
| Title: | A Preliminary Investigation into the Accuracy of 3D Modeling and 3D Printing in Forensic Anthropology Evidence Reconstruction |
| Location: | United States |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1111/1556-4029.13917 |
| Publisher version: | https://doi.org/10.1111/1556-4029.13917 |
| Language: | English |
| Additional information: | © 2018 University College London. Journal of Forensic Sciences published by Wiley Periodicals, Inc. on behalf of American Academy of Forensic Sciences. This is an open access article under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | 3D printing, additive manufacturing, computed tomography, evidence reconstruction, forensic anthropology, forensic science, metrology |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Security and Crime Science UCL > Provost and Vice Provost Offices > UCL SLASH UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS > Institute of Archaeology UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS > Institute of Archaeology > Institute of Archaeology Gordon Square |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10058829 |
