Meng, T;
Savini, G;
Leung, C;
Zhao, G;
Deng, F;
(2017)
A CST simulation and performance analysis for a passive façade integratable metamaterials structure.
In:
2017 10th UK-Europe-China Workshop on Millimetre Waves and Terahertz Technologies (UCMMT).
IEEE
Preview |
Text

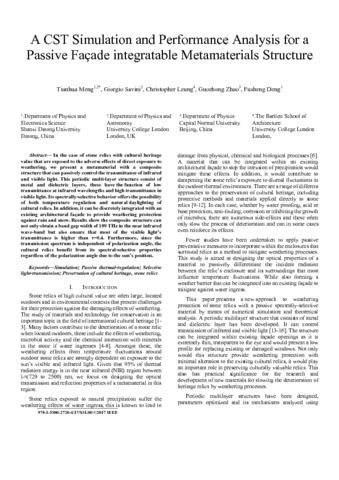

08068527.pdf - Published Version Download (417kB) | Preview |
Abstract
In the case of stone relics with cultural heritage value that are exposed to the adverse effects of direct exposure to weathering, we present a metamaterial with a composite structure that can passively control the transmittance of infrared and visible light. This periodic multi-layer structure consist of metal and dielectric layers, these have the function of low transmittance at infrared wavelengths and high transmittance in visible light. Its spectrally-selective behavior offers the possibility of both temperature regulation and natural daylighting of cultural relics. In addition, it can be discretely integrated with an existing architectural façade to provide weathering protection against rain and snow. Results show the composite structure can not only obtain a band gap width of 109 THz in the near infrared wave-band but also ensure that most of the visible light's transmittance is higher than τ=0.4. Furthermore, since the transmission spectrum is independent of polarization angle, the cultural relics benefit from its spectral-selective properties regardless of the polarization angle due to the sun's position.
| Type: | Proceedings paper |
|---|---|
| Title: | A CST simulation and performance analysis for a passive façade integratable metamaterials structure |
| Event: | 2017 10th UK-Europe-China Workshop on Millimetre Waves and Terahertz Technologies (UCMMT), 11-13 September 2017, Liverpool, UK |
| ISBN-13: | 9781538627204 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/UCMMT.2017.8068527 |
| Publisher version: | https://doi.org/10.1109/UCMMT.2017.8068527 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Simulation; Passive thermal-regulation; Selective light-transmission; Preservation of cultural heritage, stone relics |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10059755 |
