Rodriguez-Florez, N;
Florez-Tapia, A;
Jeelani, NUO;
Schievano, S;
Dunaway, DJ;
Hayward, RD;
(2018)
Investigating the cause of late deformity following fronto-orbital remodelling for metopic synostosis using 3D CT imaging.
Journal of Cranio-Maxillofacial Surgery
, 47
(1)
pp. 170-178.
10.1016/j.jcms.2018.11.008.
Preview |
Text

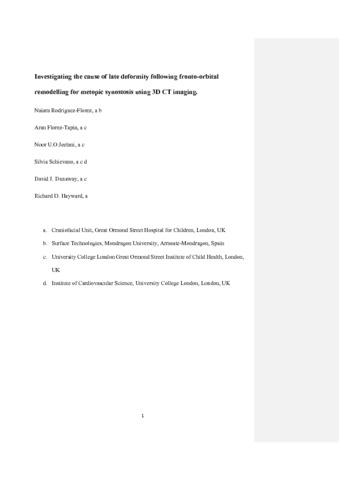

Manuscript Revised August 2018_NRF_figures.pdf - Accepted Version Download (1MB) | Preview |
Abstract
Purpose Late deformity/indentation is well-recognised following fronto-orbital remodelling (FOR) for metopic synostosis. We hypothesise that if damage to temporalis muscle were a contributor, the thickness of soft tissue and bone in the affected area would be reduced. Materials and methods Soft tissues and bone were separately segmented and reconstructed three-dimensionally from computed tomograms of 8 patients 1.5–18 years post-FOR performed at 16 ± 2 months for metopic synostosis and from 8 age-matched controls. Soft tissue (taken as proxy for temporalis muscle) and bone thickness overall and in the indented areas were computed. Results Post-FOR, three-dimensional soft tissue thickness maps demonstrated temporalis extending upwards but falling short of the indented area. Overall skull thickness increased with age post-FOR (logarithmic fit R2 = 0.71) and for controls (R2 = 0.90). Although immediately post-FOR the future indented area had a thickness of 98% of control, it decreased linearly to 64% 16 years later (Pearson's r = 0.84). Conclusion These findings suggest that late post-FOR deformity/indentation is enhanced by limited upward extension (or retraction downwards) of temporalis muscle, while bone thickness in the affected area gradually decreases. This supports the hypothesis that aberrant re-attachment of the temporalis muscle makes a material contribution to late deformity following FOR for metopic synostosis.
