At-wavelength optics characterisation via X-ray speckle- and grating-based unified modulated pattern analysis

Zdora, M-C; Zanette, I; Zhou, T; Koch, FJ; Romell, J; Sala, S; Last, A; ... Thibault, P; + view all (2018) At-wavelength optics characterisation via X-ray speckle- and grating-based unified modulated pattern analysis. Optics Express , 26 (4) pp. 4989-5004. 10.1364/OE.26.004989. Green open access

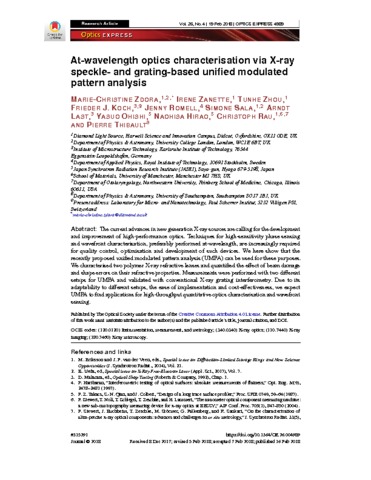

[thumbnail of oe-26-4-4989.pdf]
Preview
Text
oe-26-4-4989.pdf - Published Version

Download (8MB) | Preview

Abstract

The current advances in new generation X-ray sources are calling for the development and improvement of high-performance optics. Techniques for high-sensitivity phase sensing and wavefront characterisation, preferably performed at-wavelength, are increasingly required for quality control, optimisation and development of such devices. We here show that the recently proposed unified modulated pattern analysis (UMPA) can be used for these purposes. We characterised two polymer X-ray refractive lenses and quantified the effect of beam damage and shape errors on their refractive properties. Measurements were performed with two different setups for UMPA and validated with conventional X-ray grating interferometry. Due to its adaptability to different setups, the ease of implementation and cost-effectiveness, we expect UMPA to find applications for high-throughput quantitative optics characterisation and wavefront sensing.

Type: Article
Title: At-wavelength optics characterisation via X-ray speckle- and grating-based unified modulated pattern analysis
Open access status: An open access version is available from UCL Discovery
DOI: 10.1364/OE.26.004989
Publisher version: https://doi.org/10.1364/OE.26.004989
Language: English
Additional information: Published by The Optical Society under the terms of the Creative Commons Attribution 4.0 License (http://creativecommons.org/licenses/by/4.0/). Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.
