Yu, Y;
Zhao, G;
Savini, G;
Li, S;
(2017)
Dual polarization THz time domain spectroscopy system.
In:
(Proceedings) 2017 10th UK-Europe-China Workshop on Millimetre Waves and Terahertz Technologies (UCMMT).
IEEE
Preview |
Text

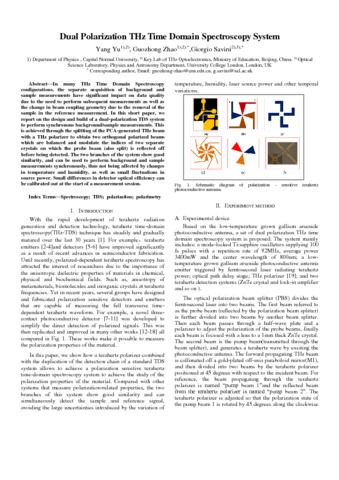

UCMMT2017_paper_102_YuYang.pdf - Accepted Version Download (622kB) | Preview |
Abstract
In many THz Time Domain Spectroscopy configurations, the separate acquisition of background and sample measurements have significant impact on data quality due to the need to perform subsequent measurements as well as the change in beam coupling geometry due to the removal of the sample in the reference measurement. In this short paper, we report on the design and build of a dual-polarization TDS system to perform synchronous background/sample measurements. This is achieved through the splitting of the PCA-generated THz beam with a THz polarizer to obtain two orthogonal polarized beams which are balanced and modulate the indices of two separate crystals on which the probe beam (also split) is reflected off before being detected. The two branches of the system show good similarity, and can be used to perform background and sample measurements synchronously, thus not being affected by changes in temperature and humidity, as well as small fluctuations in source power. Small differences in detector optical efficiency can be calibrated out at the start of a measurement session.
| Type: | Proceedings paper |
|---|---|
| Title: | Dual polarization THz time domain spectroscopy system |
| Event: | 2017 10th UK-Europe-China Workshop on Millimetre Waves and Terahertz Technologies (UCMMT) |
| ISBN-13: | 9781538627204 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/UCMMT.2017.8068519 |
| Publisher version: | https://doi.org/10.1109/UCMMT.2017.8068519 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10068316 |
