Structural Transformation Identification of Sputtered Amorphous MoSx as an Efficient Hydrogen-Evolving Catalyst during Electrochemical Activation

Xi, F; Bogdanoff, P; Harbauer, K; Plate, P; Höhn, C; Rappich, J; Wang, B; ... Fiechter, S; + view all (2019) Structural Transformation Identification of Sputtered Amorphous MoSx as an Efficient Hydrogen-Evolving Catalyst during Electrochemical Activation. ACS Catalysis , 9 (3) pp. 2368-2380. 10.1021/acscatal.8b04884. Green open access

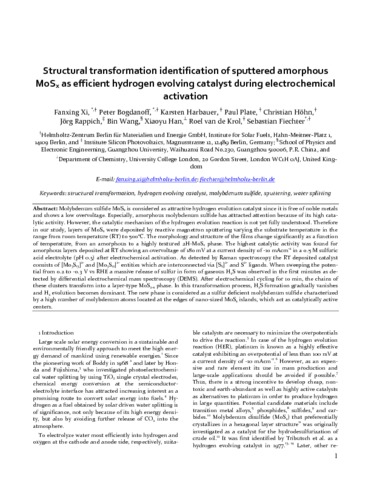

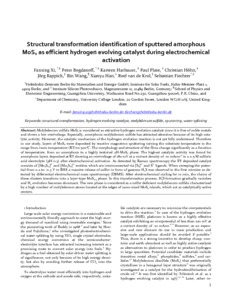

[thumbnail of Article]
Preview
Text (Article)
Han_manuscript on MoSx final submission to acs catalysis.pdf - Accepted Version

Download (1MB) | Preview

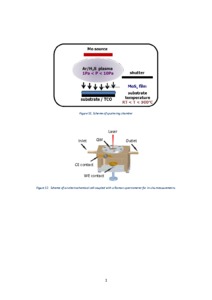

[thumbnail of Supporting Information]
Preview
Text (Supporting Information)
Han_SI final_new.pdf - Accepted Version

Download (1MB) | Preview

Abstract

Molybdenum sulfide, MoSx, is considered as attractive hydrogen evolution catalyst since it is free of noble metals and shows a low overpotential. Especially, amorphous molybdenum sulfide has attracted attention because of its high catalytic activity. However, the catalytic mechanism of the hydrogen evolution reaction is not yet fully understood. Therefore, in our study, layers of MoSₓ were deposited by reactive magnetron sputtering, varying the substrate temperature in the range from room temperature (RT) to 500 °C. The morphology and structure of the films change significantly as a function of temperature, from an amorphous to a highly textured 2H-MoS phase. The highest catalytic activity was found for amorphous layers deposited at RT, showing an overvoltage of 180 mV at a current density of −10 mA cm⁻² in a 0.5 M sulfuric acid electrolyte (pH 0.3) after electrochemical activation. As detected by Raman spectroscopy, the RT deposited catalyst consists of [Mo3S13]²⁻ and [Mo3S12]²⁻ entities which are interconnected via [S2]²⁻ and S²⁻ ligands. When the potential was swept from +0.2 to −0.3 V vs RHE, a massive release of sulfur in the form of gaseous H2S was observed in the first minutes as detected by differential electrochemical mass spectroscopy (DEMS). After electrochemical cycling for 10 min, the chains of these clusters transformed into a layer-type MoS₂_ₓ phase observed by in situ Raman spectroscopy. In this transformation process, H₂S formation gradually vanishes and H₂ evolution becomes dominant. The transformed phase is considered as a sulfur-deficient molybdenum sulfide characterized by a high number of molybdenum atoms located at the edges of nanosized MoSₓ islands, which act as catalytically active centers.

Type: Article
Title: Structural Transformation Identification of Sputtered Amorphous MoSx as an Efficient Hydrogen-Evolving Catalyst during Electrochemical Activation
Open access status: An open access version is available from UCL Discovery
DOI: 10.1021/acscatal.8b04884
Publisher version: https://doi.org/10.1021/acscatal.8b04884
Language: English
Additional information: This version is the author accepted manuscript For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: hydrogen-evolving catalyst, molybdenum sulfide, sputtering, structural transformation, water splitting
