Ballmer, MD;
Schumacher, L;
Lekic, V;
Thomas, C;
Ito, G;
(2016)
Compositional layering within the large low shear-wave velocity provinces in the lower mantle.
Geochemistry, Geophysics, Geosystems
, 17
(12)
pp. 5056-5077.
10.1002/2016GC006605.
Preview |
Text

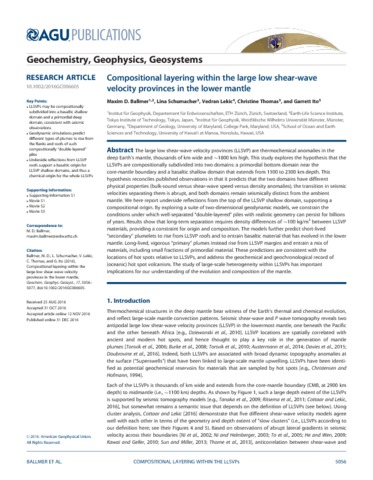

Ballmer_Compositional layering within the large low shear-wave velocity provinces in the lower mantle_VoR.pdf - Published Version Download (2MB) | Preview |
Abstract
The large low shear‐wave velocity provinces (LLSVP) are thermochemical anomalies in the deep Earth's mantle, thousands of km wide and ∼1800 km high. This study explores the hypothesis that the LLSVPs are compositionally subdivided into two domains: a primordial bottom domain near the core‐mantle boundary and a basaltic shallow domain that extends from 1100 to 2300 km depth. This hypothesis reconciles published observations in that it predicts that the two domains have different physical properties (bulk‐sound versus shear‐wave speed versus density anomalies), the transition in seismic velocities separating them is abrupt, and both domains remain seismically distinct from the ambient mantle. We here report underside reflections from the top of the LLSVP shallow domain, supporting a compositional origin. By exploring a suite of two‐dimensional geodynamic models, we constrain the conditions under which well‐separated “double‐layered” piles with realistic geometry can persist for billions of years. Results show that long‐term separation requires density differences of ∼100 kg/m³ between LLSVP materials, providing a constraint for origin and composition. The models further predict short‐lived “secondary” plumelets to rise from LLSVP roofs and to entrain basaltic material that has evolved in the lower mantle. Long‐lived, vigorous “primary” plumes instead rise from LLSVP margins and entrain a mix of materials, including small fractions of primordial material. These predictions are consistent with the locations of hot spots relative to LLSVPs, and address the geochemical and geochronological record of (oceanic) hot spot volcanism. The study of large‐scale heterogeneity within LLSVPs has important implications for our understanding of the evolution and composition of the mantle.
| Type: | Article |
|---|---|
| Title: | Compositional layering within the large low shear-wave velocity provinces in the lower mantle |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1002/2016GC006605 |
| Publisher version: | https://doi.org/10.1002/2016GC006605 |
| Language: | English |
| Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | LLSVP, superplume, mantle plumes, primordial reservoir, underside reflections, mantle composition |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Earth Sciences |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10071515 |
