Zainal Abidin, MII;
Park, KH;
Angeli, P;
(2019)
Vortex-induced interfacial waves in liquid–liquid flows across cylindrical bluff bodies of various sizes.
European Journal of Mechanics - B/Fluids
, 76
pp. 340-351.
10.1016/j.euromechflu.2019.03.010.
Preview |
Text

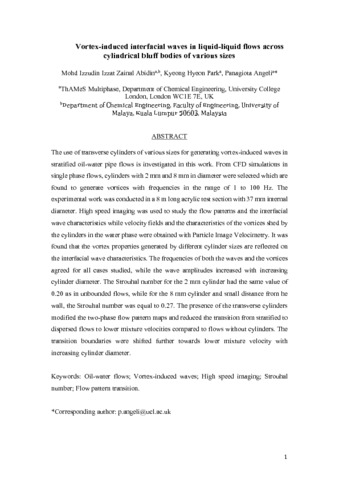

BluffBodyParam_EJFM_UCL Rep.pdf - Accepted Version Download (5MB) | Preview |
Abstract
The use of transverse cylinders of various sizes for generating vortex-induced waves in stratified oil–water pipe flows is investigated in this work. From CFD simulations in single phase flows, cylinders with 2 mm and 8 mm in diameter were selected which are found to generate vortices with frequencies in the range of 1 to 100 Hz. The experimental work was conducted in a 8 m long acrylic test section with 37 mm internal diameter. High speed imaging was used to study the flow patterns and the interfacial wave characteristics while velocity fields and the characteristics of the vortices shed by the cylinders in the water phase were obtained with Particle Image Velocimetry. It was found that the vortex properties generated by different cylinder sizes are reflected on the interfacial wave characteristics. The frequencies of both the waves and the vortices agreed for all cases studied, while the wave amplitudes increased with increasing cylinder diameter. The Strouhal number for the 2 mm cylinder had the same value of 0.20 as in unbounded flows, while for the 8 mm cylinder and small distance from the wall, the Strouhal number was equal to 0.27. The presence of the transverse cylinders modified the two-phase flow pattern maps and reduced the transition from stratified to dispersed flows to lower mixture velocities compared to flows without cylinders. The transition boundaries were shifted further towards lower mixture velocity with increasing cylinder diameter.
| Type: | Article |
|---|---|
| Title: | Vortex-induced interfacial waves in liquid–liquid flows across cylindrical bluff bodies of various sizes |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.euromechflu.2019.03.010 |
| Publisher version: | https://doi.org/10.1016/j.euromechflu.2019.03.010 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | oil–water flows, Vortex-induced waves, High speed imaging, Strouhal number, Flow pattern transition |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10073687 |
