Slater, T;
Shepherd, A;
Mcmillan, M;
Muir, A;
Gilbert, L;
Hogg, AE;
Konrad, H;
(2018)
A new digital elevation model of Antarctica derived from CryoSat-2 altimetry.
Cryosphere
, 12
(4)
pp. 1551-1562.
10.5194/tc-12-1551-2018.
Preview |
Text

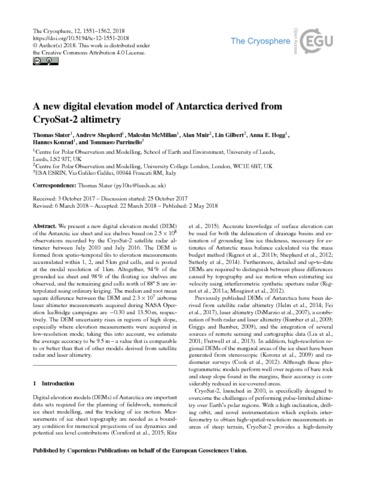

tc-12-1551-2018.pdf - Published Version Download (11MB) | Preview |
Abstract
We present a new digital elevation model (DEM) of the Antarctic ice sheet and ice shelves based on 2.5 × 108 observations recorded by the CryoSat-2 satellite radar altimeter between July 2010 and July 2016. The DEM is formed from spatio-temporal fits to elevation measurements accumulated within 1, 2, and 5 km grid cells, and is posted at the modal resolution of 1 km. Altogether, 94 % of the grounded ice sheet and 98 % of the floating ice shelves are observed, and the remaining grid cells north of 88◦ S are interpolated using ordinary kriging. The median and root mean square difference between the DEM and 2.3 × 107 airborne laser altimeter measurements acquired during NASA Operation IceBridge campaigns are −0.30 and 13.50 m, respectively. The DEM uncertainty rises in regions of high slope, especially where elevation measurements were acquired in low-resolution mode; taking this into account, we estimate the average accuracy to be 9.5 m – a value that is comparable to or better than that of other models derived from satellite radar and laser altimetry
| Type: | Article |
|---|---|
| Title: | A new digital elevation model of Antarctica derived from CryoSat-2 altimetry |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.5194/tc-12-1551-2018 |
| Publisher version: | https://doi.org/10.5194/tc-12-1551-2018 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Space and Climate Physics |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10076684 |
