Wang, H;
Atwood, RC;
Pankhurst, MJ;
Kashyap, Y;
Cai, B;
Zhou, T;
Lee, PD;
... Sawhney, K; + view all
(2019)
High-energy, high-resolution, fly-scan X-ray phase tomography.
Scientific Reports
, 9
(1)
, Article 8913. 10.1038/s41598-019-45561-w.
Preview |
Text

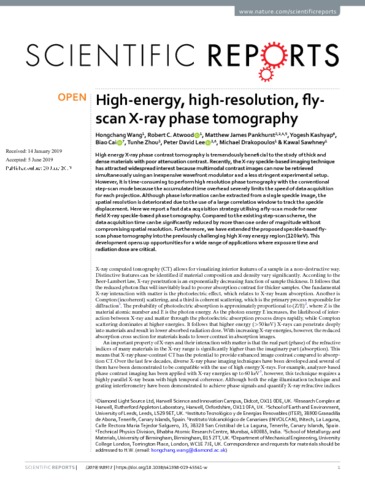

Lee_High-energy, high-resolution, fly-scan X-ray phase tomography_VoR.pdf - Published Version Download (2MB) | Preview |
Abstract
High energy X-ray phase contrast tomography is tremendously beneficial to the study of thick and dense materials with poor attenuation contrast. Recently, the X-ray speckle-based imaging technique has attracted widespread interest because multimodal contrast images can now be retrieved simultaneously using an inexpensive wavefront modulator and a less stringent experimental setup. However, it is time-consuming to perform high resolution phase tomography with the conventional step-scan mode because the accumulated time overhead severely limits the speed of data acquisition for each projection. Although phase information can be extracted from a single speckle image, the spatial resolution is deteriorated due to the use of a large correlation window to track the speckle displacement. Here we report a fast data acquisition strategy utilising a fly-scan mode for near field X-ray speckle-based phase tomography. Compared to the existing step-scan scheme, the data acquisition time can be significantly reduced by more than one order of magnitude without compromising spatial resolution. Furthermore, we have extended the proposed speckle-based fly-scan phase tomography into the previously challenging high X-ray energy region (120 keV). This development opens up opportunities for a wide range of applications where exposure time and radiation dose are critical.
| Type: | Article |
|---|---|
| Title: | High-energy, high-resolution, fly-scan X-ray phase tomography |
| Location: | England |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1038/s41598-019-45561-w |
| Publisher version: | https://doi.org/10.1038/s41598-019-45561-w |
| Language: | English |
| Additional information: | © The Author(s) 2019. This article is licensed under a Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Geology, Imaging techniques |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10077544 |
