Bullier, NP;
Pontin, A;
Barker, PF;
(2019)
Super-resolution imaging of a low frequency levitated oscillator.
Review of Scientific Instruments
, 90
(9)
, Article 093201. 10.1063/1.5108807.
Preview |
Text

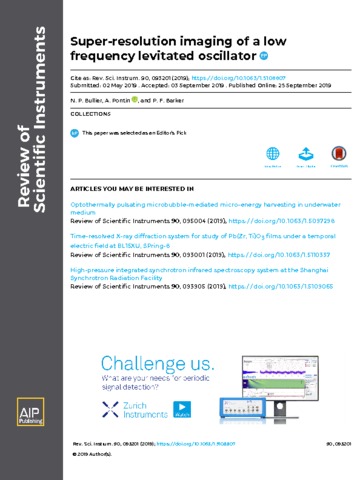

1.5108807.pdf - Published Version Download (2MB) | Preview |
Abstract
We describe the measurement of the secular motion of a levitated nanoparticle in a Paul trap with a CMOS camera. This simple method enables us to reach signal-to-noise ratios as good as 106 with a displacement sensitivity better than 10−16 m2/Hz. This method can be used to extract trap parameters as well as the properties of the levitated particles. We demonstrate continuous monitoring of the particle dynamics on time scales of the order of weeks. We show that by using the improvement given by super-resolution imaging, a significant reduction in the noise floor can be attained, with an increase in the bandwidth of the force sensitivity. This approach represents a competitive alternative to standard optical detection for a range of low frequency oscillators where low optical powers are required.
| Type: | Article |
|---|---|
| Title: | Super-resolution imaging of a low frequency levitated oscillator |
| Location: | United States |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1063/1.5108807 |
| Publisher version: | https://doi.org/10.1063/1.5108807 |
| Language: | English |
| Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10083333 |
