Ma, L;
Sacks, R;
(2016)
A cloud-based BIM platform for information collaboration.
In: Sattineni, A, (ed.)
Proceedings of the 33rd international symposium for automation and robotics in construction (ISARC 2016).
(pp. pp. 581-589).
IAARC (The International Association for Automation and Robotics in Construction): Auburn, AL, USA.
Preview |
Text

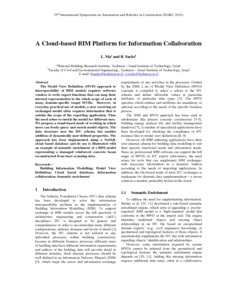

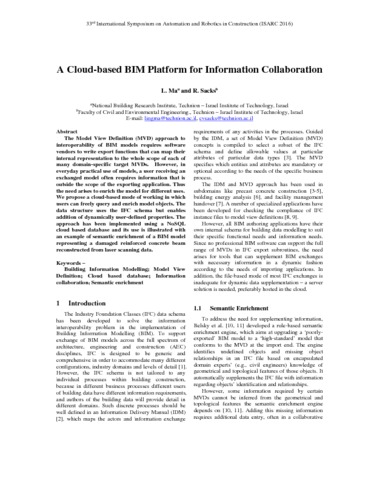

2_PDFsam_5 Ma-2016-A cloud based BIM platform for informa.pdf - Published Version Download (239kB) | Preview |
Abstract
The Model View Definition (MVD) approach to interoperability of BIM models requires software vendors to write export functions that can map their internal representation to the whole scope of each of many domain-specific target MVDs. However, in everyday practical use of models, a user receiving an exchanged model often requires information that is outside the scope of the exporting application. Thus the need arises to enrich the model for different uses. We propose a cloud-based mode of working in which users can freely query and enrich model objects. The data structure uses the IFC schema but enables addition of dynamically user-defined properties. The approach has been implemented using a NoSQL cloud based database and its use is illustrated with an example of semantic enrichment of a BIM model representing a damaged reinforced concrete beam reconstructed from laser scanning data.
Type: | Proceedings paper |
---|---|
Title: | A cloud-based BIM platform for information collaboration |
Event: | 33rd international symposium for automation and robotics in construction (ISARC 2016), 18-21 July 2016, Auburn, AL, USA |
Open access status: | An open access version is available from UCL Discovery |
DOI: | 10.22260/ISARC2016/0070 |
Publisher version: | https://doi.org/10.22260/ISARC2016/0070 |
Language: | English |
Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
Keywords: | Building Information Modelling, Model View Definition, Cloud based database, Information collaboration, Semantic enrichment |
UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of the Built Environment |
URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10083739 |
