Esteki, MH;
Alemrajabi, AA;
Hall, C;
Sheridan, GK;
Azadi, M;
Moeendarbary, E;
(2019)
A new framework for characterization of poroelastic materials using indentation.
Acta Biomaterialia
10.1016/j.actbio.2019.11.010.
(In press).
Preview |
Text

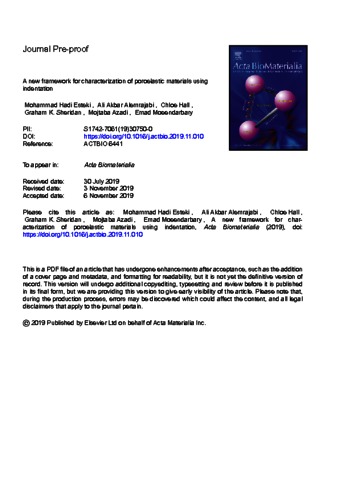

1-s2.0-S1742706119307500-main.pdf - Accepted Version Download (2MB) | Preview |
Abstract
To characterize a poroelastic material, typically an indenter is pressed onto the surface of the material with a ramp of a finite approach velocity followed by a hold where the indenter displacement is kept constant This leads to deformation of the porous matrix, pressurization of the interstitial fluid and relaxation due to redistribution of fluid through the pores. In most studies the poroelastic properties, including elastic modulus, Poisson ratio and poroelastic diffusion coefficient, are extracted by assuming an instantaneous step indentation. However, exerting step like indentation is not experimentally possible and usually a ramp indentation with a finite approach velocity is applied. Moreover, the poroelastic relaxation time highly depends on the approach velocity in addition to the poroelastic diffusion coefficient and the contact area. Here, we extensively studied the effect of indentation velocity using finite element simulations which has enabled the formulation of a new framework based on a master curve that incorporates the finite rise time. To verify our novel framework, the poroelastic properties of two types of hydrogels were extracted experimentally using indentation tests at both macro and micro scales. Our new framework that is based on consideration of finite approach velocity is experimentally easy to implement and provides more accurate estimation of poroelastic properties.
| Type: | Article |
|---|---|
| Title: | A new framework for characterization of poroelastic materials using indentation |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.actbio.2019.11.010 |
| Publisher version: | https://doi.org/10.1016/j.actbio.2019.11.010 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Poroelasticity, Indentation, Relaxation time, Finite element model, Hydrogels, Atomic force microscopy |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10086066 |
