Olukotun, B;
Partridge, JS;
Bucknall, RWG;
(2019)
Loss Performance Evaluation of Ferrite-Cored Wireless Power System with Conductive and Magnetic Shields.
In:
Proceedings of the 2019 IEEE PES Innovative Smart Grid Technologies Europe (ISGT-Europe).
IEEE: Bucharest, Romania.

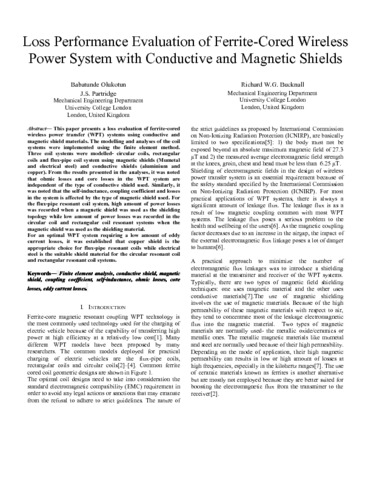

Preview |
Text
Isgteurope2019_267_Babatunde_Olukotun.pdf - Accepted Version Download (1MB) | Preview |
Abstract
This paper presents a loss evaluation of ferrite-cored wireless power transfer (WPT) systems using conductive and magnetic shield materials. The modelling and analyses of the coil systems were implemented using the finite element method. Three coil systems were modelled-circular coils, rectangular coils and flux-pipe coil system using magnetic shields (Mumetal and electrical steel) and conductive shields (aluminum and copper). From the results presented in the analyses, it was noted that ohmic losses and core losses in the WPT system are independent of the type of conductive shield used. Similarly, it was noted that the self-inductance, coupling coefficient and losses in the system is affected by the type of magnetic shield used. For the flux-pipe resonant coil system, high power losses were recorded when a magnetic shield was used as the shielding topology while low power losses were recorded in the circular coil and rectangular coil resonant systems when the magnetic shield was used as the shielding material. For optimal WPT system requiring low eddy current losses, it was established that copper shield is the appropriate choice for flux-pipe resonant coils while electrical steel is the suitable shield material for the circular resonant coil and rectangular resonant coil systems.
Type: | Proceedings paper |
---|---|
Title: | Loss Performance Evaluation of Ferrite-Cored Wireless Power System with Conductive and Magnetic Shields |
Event: | 2019 IEEE PES Innovative Smart Grid Technologies Europe (ISGT-Europe) |
ISBN-13: | 978-1-5386-8218-0 |
Open access status: | An open access version is available from UCL Discovery |
DOI: | 10.1109/ISGTEurope.2019.8905437 |
Publisher version: | https://doi.org/10.1109/ISGTEurope.2019.8905437 |
Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
Keywords: | Finite element analysis, conductive shield, magnetic shield, coupling coefficient, self-inductance, ohmic losses, core losses, eddy current losses |
UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering |
URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10089844 |
