Volz, L;
Kelleter, L;
Brons, S;
Burigo, LN;
Graeff, C;
Niebuhr, NI;
Radogna, R;
... Seco, J; + view all
(2020)
Experimental exploration of a mixed helium/carbon beam for online treatment monitoring in carbon ion beam therapy.
Physics in Medicine & Biology
10.1088/1361-6560/ab6e52.
(In press).
Preview |
Text

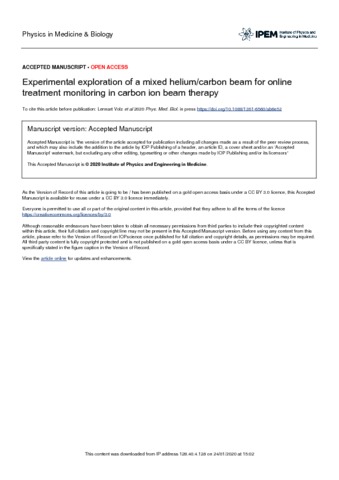

Volz+et+al_2020_Phys._Med._Biol._10.1088_1361-6560_ab6e52.pdf - Published Version Download (2MB) | Preview |
Abstract
Recently, it has been proposed that a mixed helium/carbon beam could be used for online monitoring in carbon ion beam therapy. Fully stripped, the two ion species exhibit approximately the same mass/charge ratio and hence could potentially be accelerated simultaneously in a synchrotron to the same energy per nucleon. At the same energy per nucleon, helium ions have about three times the range of carbon ions, which could allow for simultaneous use of the carbon ion beam for treatment and the helium ion beam for imaging. In this work, measurements and simulations of PMMA phantoms as well as anthropomorphic phantoms irradiated sequentially with a helium ion and a carbon ion beam at equal energy per nucleon are presented. The range of the primary helium ion beam and the fragment tail of the carbon ion beam exiting the phantoms were detected using a novel range telescope made of thin plastic scintillator sheets read out by a flat-panel CMOS sensor. A 10:1 carbon to helium mixing ratio is used, generating a helium signal well above the carbon fragment background while adding little to the dose delivered to the patient. The range modulation of a narrow air gap of 1 mm thickness in the PMMA phantom that affects less than a quarter of the particles in a pencil beam were detected, demonstrating the achievable relative sensitivity of the presented method. Using two anthropomorphic pelvis phantoms it is shown that small rotations of the phantom as well as simulated bowel gas movements cause detectable changes in the helium/carbon beam exiting the phantom. The future prospects and limitations of the helium-carbon mixing as well as its technical feasibility are discussed.
| Type: | Article |
|---|---|
| Title: | Experimental exploration of a mixed helium/carbon beam for online treatment monitoring in carbon ion beam therapy |
| Location: | England |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1088/1361-6560/ab6e52 |
| Publisher version: | https://doi.org/10.1088/1361-6560/ab6e52 |
| Language: | English |
| Additional information: | © 2020 IOP Publishing. As the Version of Record of this article is going to be/has been published on a gold open access basis under a CC BY 3.0 licence, this Accepted Manuscript is available for reuse under a CC BY 3.0 licence immediately. |
| Keywords: | 4D Treatment Monitoring, Carbon therapy, Helium imaging, Mixed beam, Range verification |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10090409 |
