Nandan, V;
Scharien, RK;
Geldsetzer, T;
Kwok, R;
Yackel, JJ;
Mahmud, MS;
Rosel, A;
... Frey, M; + view all
(2020)
Snow property controls on modelled Ku-band altimeter estimates of first-year sea ice thickness: Case studies from the Canadian and Norwegian Arctic.
IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing
, 13
pp. 1082-1096.
10.1109/jstars.2020.2966432.
Preview |
Text

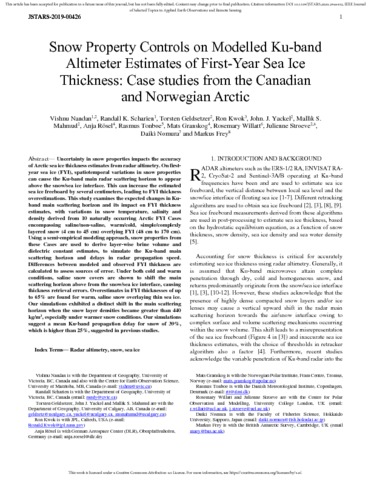

09000883.pdf - Published Version Download (618kB) | Preview |
Abstract
Uncertainty in snow properties impacts the accuracy of Arctic sea ice thickness estimates from radar altimetry. On firstyear sea ice (FYI), spatiotemporal variations in snow properties can cause the Ku-band main radar scattering horizon to appear above the snow/sea ice interface. This can increase the estimated sea ice freeboard by several centimeters, leading to FYI thickness overestimations. This study examines the expected changes in Kuband main scattering horizon and its impact on FYI thickness estimates, with variations in snow temperature, salinity and density derived from 10 naturally occurring Arctic FYI Cases encompassing saline/non-saline, warm/cold, simple/complexly layered snow (4 cm to 45 cm) overlying FYI (48 cm to 170 cm). Using a semi-empirical modeling approach, snow properties from these Cases are used to derive layer-wise brine volume and dielectric constant estimates, to simulate the Ku-band main scattering horizon and delays in radar propagation speed. Differences between modeled and observed FYI thickness are calculated to assess sources of error. Under both cold and warm conditions, saline snow covers are shown to shift the main scattering horizon above from the snow/sea ice interface, causing thickness retrieval errors. Overestimates in FYI thicknesses of up to 65% are found for warm, saline snow overlaying thin sea ice. Our simulations exhibited a distinct shift in the main scattering horizon when the snow layer densities became greater than 440 kg/m3 , especially under warmer snow conditions. Our simulations suggest a mean Ku-band propagation delay for snow of 39%, which is higher than 25%, suggested in previous studies.
| Type: | Article |
|---|---|
| Title: | Snow property controls on modelled Ku-band altimeter estimates of first-year sea ice thickness: Case studies from the Canadian and Norwegian Arctic |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/jstars.2020.2966432 |
| Publisher version: | https://doi.org/10.1109/jstars.2020.2966432 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 License. For more information, see https://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Radar altimetry, snow, sea ice |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Earth Sciences |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10093281 |
