Prat-Camps, J; Christopoulos, G; Hardwick, J; Subramanian, S; (2020) A Manually Reconfigurable Reflective Spatial Sound Modulator for Ultrasonic Waves in Air. Advanced Materials Technologies 10.1002/admt.202000041. (In press).

Preview

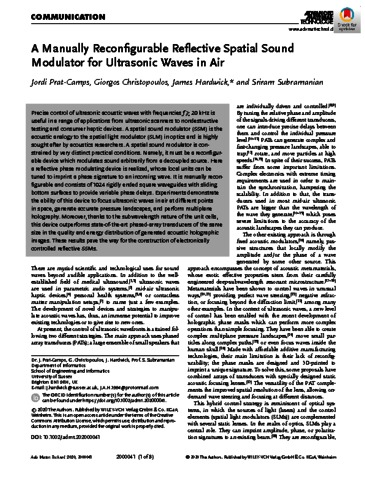

Text admt.202000041.pdf - Published Version Download (1MB) | Preview

Abstract

Precise control of ultrasonic acoustic waves with frequencies f ≳ 20 kHz is useful in a range of applications from ultrasonic scanners to nondestructive testing and consumer haptic devices. A spatial sound modulator (SSM) is the acoustic analogy to the spatial light modulator (SLM) in optics and is highly sought after by acoustics researchers. A spatial sound modulator is constrained by very distinct practical conditions. Namely, it must be a reconfigurable device which modulates sound arbitrarily from a decoupled source. Here a reflective phase modulating device is realized, whose local units can be tuned to imprint a phase signature to an incoming wave. It is manually reconfigurable and consists of 1024 rigidly ended square waveguides with sliding bottom surfaces to provide variable phase delays. Experiments demonstrate the ability of this device to focus ultrasonic waves in air at different points in space, generate accurate pressure landscapes, and perform multiplane holography. Moreover, thanks to the subwavelength nature of the unit cells, this device outperforms state‐of‐the‐art phased‐array transducers of the same size in the quality and energy distribution of generated acoustic holographic images. These results pave the way for the construction of electronically controlled reflective SSMs.
