Montesano, G;
Ometto, G;
Hogg, RE;
Rossetti, LM;
Garway-Heath, DF;
Crabb, DP;
(2020)
Revisiting the Drasdo Model: Implications for Structure-Function Analysis of the Macular Region.
Translational Vision Science & Technology (TVST)
, 9
(10)
, Article 15. 10.1167/tvst.9.10.15.
Preview |
Text

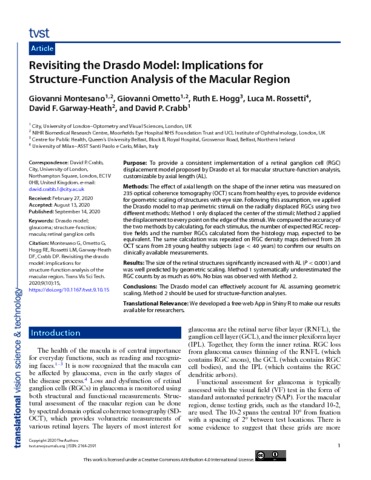

Revisiting the Drasdo Model Implications for Structure-Function Analysis of the Macular Region.pdf - Published Version Download (5MB) | Preview |
Abstract
Purpose: To provide a consistent implementation of a retinal ganglion cell (RGC) displacement model proposed by Drasdo et al. for macular structure-function analysis, customizable by axial length (AL). Methods: The effect of axial length on the shape of the inner retina was measured on 235 optical coherence tomography (OCT) scans from healthy eyes, to provide evidence for geometric scaling of structures with eye size. Following this assumption, we applied the Drasdo model to map perimetric stimuli on the radially displaced RGCs using two different methods: Method 1 only displaced the center of the stimuli; Method 2 applied the displacement to every point on the edge of the stimuli. We compared the accuracy of the two methods by calculating, for each stimulus, the number of expected RGC receptive fields and the number RGCs calculated from the histology map, expected to be equivalent. The same calculation was repeated on RGC density maps derived from 28 OCT scans from 28 young healthy subjects (age < 40 years) to confirm our results on clinically available measurements. Results: The size of the retinal structures significantly increased with AL (P < 0.001) and was well predicted by geometric scaling. Method 1 systematically underestimated the RGC counts by as much as 60%. No bias was observed with Method 2. Conclusions: The Drasdo model can effectively account for AL assuming geometric scaling. Method 2 should be used for structure-function analyses. Translational Relevance: We developed a free web App in Shiny R to make our results available for researchers.
| Type: | Article |
|---|---|
| Title: | Revisiting the Drasdo Model: Implications for Structure-Function Analysis of the Macular Region |
| Location: | United States |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1167/tvst.9.10.15 |
| Publisher version: | https://doi.org/10.1167/tvst.9.10.15 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 4.0 International License. The images or other third party material in this article are included in the Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/ |
| Keywords: | Drasdo model, glaucoma, macula, retinal ganglion cells, structure-function |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Brain Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Brain Sciences > Institute of Ophthalmology |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10112542 |
