Wolf, M;
Gibson, EK;
Olivier, EJ;
Neethling, JH;
Catlow, CRA;
Fischer, N;
Claeys, M;
(2020)
In-depth characterisation of metal-support compounds in spent Co/SiO2 Fischer-Tropsch model catalysts.
Catalysis Today
, 342
pp. 71-78.
10.1016/j.cattod.2019.01.065.
Preview |
Text

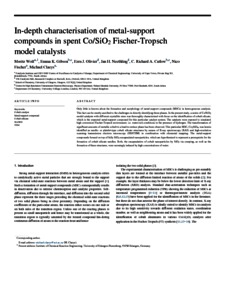

Catlow_In-depth characterisation of metal-support compounds_AAM.pdf - Accepted Version Download (706kB) | Preview |
Abstract
Only little is known about the formation and morphology of metal-support compounds (MSCs) in heterogeneous catalysis. This fact can be mostly ascribed to the challenges in directly identifying these phases. In the present study, a series of Co/SiO2 model catalysts with different crystallite sizes was thoroughly characterised with focus on the identification of cobalt silicate, which is the expected metal-support compound for this particular catalyst system. The catalysts were exposed to simulated high conversion Fischer-Tropsch environment, i.e. water-rich conditions in the presence of hydrogen. The transformation of significant amounts of metallic cobalt to a hard-to-reduce phase has been observed. This particular MSC, Co2SiO4, was herein identified as needle- or platelet-type cobalt silicate structures by means of X-ray spectroscopy (XAS) and high-resolution scanning transmission electron microscopy (HRSTEM) in combination with elemental mapping. The metal-support compounds formed on top of fully SiO2-encapsulated nanoparticles, which are hypothesised to represent a prerequisite for the formation of cobalt silicate needles. Both, the encapsulation of cobalt nanoparticles by SiO2 via creeping, as well as the formation of these structures, were seemingly induced by high concentrations of water.
| Type: | Article |
|---|---|
| Title: | In-depth characterisation of metal-support compounds in spent Co/SiO2 Fischer-Tropsch model catalysts |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.cattod.2019.01.065 |
| Publisher version: | https://doi.org/10.1016/j.cattod.2019.01.065 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Cobalt catalyst; Metal-support compound; Cobalt silicate; XANES; TEM |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Chemistry |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10119232 |
