Zhu, B;
Johansen, VE;
Kamita, G;
Guidetti, G;
Bay, MM;
Parton, TG;
Frka-Petesic, B;
(2020)
Hyperspectral Imaging of Photonic Cellulose Nanocrystal Films: Structure of Local Defects and Implications for Self-Assembly Pathways.
ACS Nano
, 14
(11)
pp. 15361-15373.
10.1021/acsnano.0c05785.
Preview |
Text

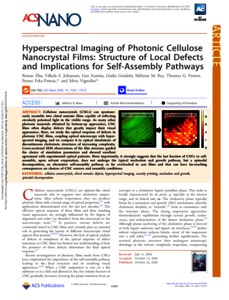

acsnano.0c05785.pdf - Published Version Download (6MB) | Preview |
Abstract
Cellulose nanocrystals (CNCs) can spontaneously assemble into chiral nematic films capable of reflecting circularly polarized light in the visible range. As many other photonic materials obtained by bottom-up approaches, CNC films often display defects that greatly impact their visual appearance. Here, we study the optical response of defects in photonic CNC films, coupling optical microscopy with hyperspectral imaging, and we compare it to optical simulations of discontinuous cholesteric structures of increasing complexity. Cross-sectional SEM observations of the film structure guided the choice of simulation parameters and showed excellent agreement with experimental optical patterns. More importantly, it strongly suggests that the last fraction of CNCs to self-assemble, upon solvent evaporation, does not undergo the typical nucleation and growth pathway, but a spinodal decomposition, an alternative self-assembly pathway so far overlooked in cast films and that can have far-reaching consequences on choices of CNC sources and assembly conditions.
| Type: | Article |
|---|---|
| Title: | Hyperspectral Imaging of Photonic Cellulose Nanocrystal Films: Structure of Local Defects and Implications for Self-Assembly Pathways |
| Location: | United States |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1021/acsnano.0c05785 |
| Publisher version: | https://doi.org/10.1021/acsnano.0c05785 |
| Language: | English |
| Additional information: | This is an open access article published under a Creative Commons Attribution (CC-BY) License (http://pubs.acs.org/page/policy/authorchoice_ccby_termsofuse.html), which permits unrestricted use, distribution and reproduction in any medium, provided the author and source are cited. |
| Keywords: | cellulose nanocrystals, chiral nematic defects, hyperspectral imaging, nucleation and growth, security printing, spinodal decomposition |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Chemistry |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10123589 |
