Cury, J;
Vande Perre, L;
Smets, H;
Stumpp, L;
Vespa, S;
Vanhoestenberghe, A;
Doguet, P;
... Nonclercq, A; + view all
(2021)
Infrared neurostimulation in ex-vivo rat sciatic nerve using 1470 nm wavelength.
Journal of Neural Engineering
, 18
(5)
, Article 056018. 10.1088/1741-2552/abf28f.
Preview |
Text

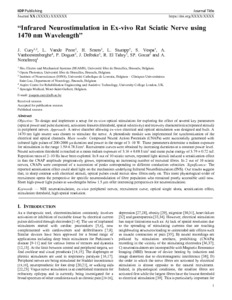

cury2021_Infrared neurostimulation in ex vivo rat sciatic nerve using a 1470nm wavelength.pdf - Accepted Version Download (1MB) | Preview |
Abstract
OBJECTIVE: To design and implement a setup for ex-vivo optical stimulation for exploring the effect of several key parameters (optical power and pulse duration), activation features (threshold, spatial selectivity) and recovery characteristics (repeated stimuli) in peripheral nerves. APPROACH: A nerve chamber allowing ex-vivo electrical and optical stimulation was designed and built. A 1470 nm light source was chosen to stimulate the nerve. A photodiode module was implemented for synchronization of the electrical and optical channels. MAIN RESULTS: Compound Neural Action Potentials (CNAPs) were successfully generated with infrared light pulses of 200-2000 µs duration and power in the range of 3-10 W. These parameters determine a radiant exposure for stimulation in the range 1.59-4.78 J/cm2. Recruitment curves were obtained by increasing durations at a constant power level. Neural activation threshold is reached at a mean radiant exposure of 3.16 ± 0.68 J/cm2 and mean pulse energy of 3.79 ± 0.72 mJ. Repetition rates of 2-10 Hz have been explored. In 8 out of 10 sciatic nerves, repeated light stimuli induced a sensitisation effect in that the CNAP amplitude progressively grows, representing an increasing number of recruited fibres. In 2 out of 10 sciatic nerves, CNAPs were composed of a succession of peaks corresponding to different conduction velocities. SIGNIFICANCE: The reported sensitisation effect could shed light on the mechanism underlying Infrared NeuroStimulation (INS). Our results suggest that, in sharp contrast with electrical stimuli, optical pulses could recruit slow fibres early on. This more physiological order of recruitment opens the perspective for specific neuromodulation of fibre population who remained poorly accessible until now. Short high-power light pulses at wavelengths below 1.5 µm offer interesting perspectives for neurostimulation.
| Type: | Article |
|---|---|
| Title: | Infrared neurostimulation in ex-vivo rat sciatic nerve using 1470 nm wavelength. |
| Location: | England |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1088/1741-2552/abf28f |
| Publisher version: | https://doi.org/10.1088/1741-2552/abf28f |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Ex-vivo peripheral nerves, High spatial resolution, NIR neurostimulation, Optical single shots, Recruitment curve, Sensitization effect, Stimulation threshold |
