Rahim, W;
Skelton, JM;
Scanlon, DO;
(2021)
Ca_{4}Sb_{2}O and Ca_{4}Bi_{2}O: two promising mixed-anion thermoelectrics.
Journal of Materials Chemistry A
10.1039/d1ta03649a.
(In press).
Preview |
Text

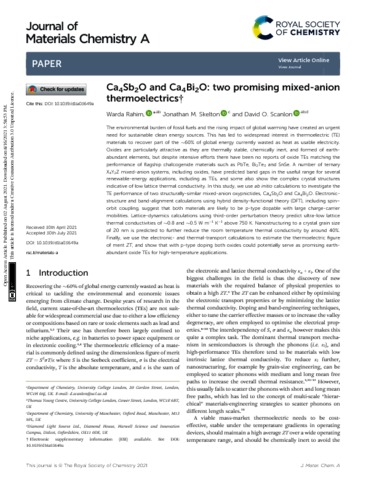

d1ta03649a.pdf - Published Version Download (3MB) | Preview |
Abstract
The environmental burden of fossil fuels and the rising impact of global warming have created an urgent need for sustainable clean energy sources. This has led to widespread interest in thermoelectric (TE) materials to recover part of the ∼60% of global energy currently wasted as heat as usable electricity. Oxides are particularly attractive as they are thermally stable, chemically inert, and formed of earth-abundant elements, but despite intensive efforts there have been no reports of oxide TEs matching the performance of flagship chalcogenide materials such as PbTe, Bi_{2}Te_{3} and SnSe. A number of ternary X_{4}Y_{2}Z mixed-anion systems, including oxides, have predicted band gaps in the useful range for several renewable-energy applications, including as TEs, and some also show the complex crystal structures indicative of low lattice thermal conductivity. In this study, we use ab initio calculations to investigate the TE performance of two structurally-similar mixed-anion oxypnictides, Ca_{4}Sb_{2}O and Ca_{4}Bi_{2}O. Electronic-structure and band-alignment calculations using hybrid density-functional theory (DFT), including spin–orbit coupling, suggest that both materials are likely to be p-type dopable with large charge-carrier mobilities. Lattice-dynamics calculations using third-order perturbation theory predict ultra-low lattice thermal conductivities of ∼0.8 and ∼0.5 W m^{−1} K^{−1} above 750 K. Nanostructuring to a crystal grain size of 20 nm is predicted to further reduce the room temperature thermal conductivity by around 40%. Finally, we use the electronic- and thermal-transport calculations to estimate the thermoelectric figure of merit ZT, and show that with p-type doping both oxides could potentially serve as promising earth-abundant oxide TEs for high-temperature applications.
| Type: | Article |
|---|---|
| Title: | Ca_{4}Sb_{2}O and Ca_{4}Bi_{2}O: two promising mixed-anion thermoelectrics |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1039/d1ta03649a |
| Publisher version: | https://doi.org/10.1039/D1TA03649A |
| Language: | English |
| Additional information: | © The Royal Society of Chemistry 2021. This article is Open Access (http://creativecommons.org/licenses/by/3.0/). |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Chemistry |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10133052 |
