Tao, Y;
Muller, J-P;
Conway, SJ;
Xiong, S;
(2021)
Large Area High-Resolution 3D Mapping of Oxia Planum: The Landing Site for the ExoMars Rosalind Franklin Rover.
Remote Sensing
, 13
(16)
, Article 3270. 10.3390/rs13163270.
Preview |
Text

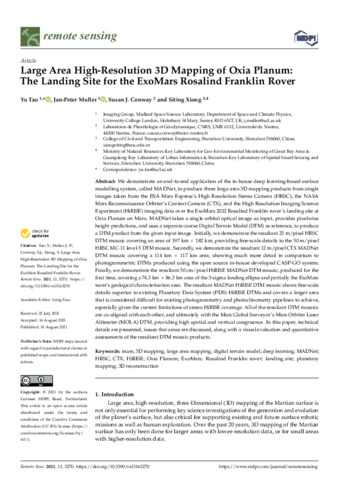

Muller_Large Area High-Resolution 3D Mapping of Oxia Planum- The Landing Site for the ExoMars Rosalind Franklin Rover_VoR.pdf - Published Version Download (14MB) | Preview |
Abstract
We demonstrate an end-to-end application of the in-house deep learning-based surface modelling system, called MADNet, to produce three large area 3D mapping products from single images taken from the ESA Mars Express’s High Resolution Stereo Camera (HRSC), the NASA Mars Reconnaissance Orbiter’s Context Camera (CTX), and the High Resolution Imaging Science Experiment (HiRISE) imaging data over the ExoMars 2022 Rosalind Franklin rover’s landing site at Oxia Planum on Mars. MADNet takes a single orbital optical image as input, provides pixelwise height predictions, and uses a separate coarse Digital Terrain Model (DTM) as reference, to produce a DTM product from the given input image. Initially, we demonstrate the resultant 25 m/pixel HRSC DTM mosaic covering an area of 197 km × 182 km, providing fine-scale details to the 50 m/pixel HRSC MC-11 level-5 DTM mosaic. Secondly, we demonstrate the resultant 12 m/pixel CTX MADNet DTM mosaic covering a 114 km × 117 km area, showing much more detail in comparison to photogrammetric DTMs produced using the open source in-house developed CASP-GO system. Finally, we demonstrate the resultant 50 cm/pixel HiRISE MADNet DTM mosaic, produced for the first time, covering a 74.3 km × 86.3 km area of the 3-sigma landing ellipse and partially the ExoMars team’s geological characterisation area. The resultant MADNet HiRISE DTM mosaic shows fine-scale details superior to existing Planetary Data System (PDS) HiRISE DTMs and covers a larger area that is considered difficult for existing photogrammetry and photoclinometry pipelines to achieve, especially given the current limitations of stereo HiRISE coverage. All of the resultant DTM mosaics are co-aligned with each other, and ultimately with the Mars Global Surveyor’s Mars Orbiter Laser Altimeter (MOLA) DTM, providing high spatial and vertical congruence. In this paper, technical details are presented, issues that arose are discussed, along with a visual evaluation and quantitative assessments of the resultant DTM mosaic products.
| Type: | Article |
|---|---|
| Title: | Large Area High-Resolution 3D Mapping of Oxia Planum: The Landing Site for the ExoMars Rosalind Franklin Rover |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.3390/rs13163270 |
| Publisher version: | https://doi.org/10.3390/rs13163270 |
| Language: | English |
| Additional information: | This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited |
| Keywords: | mars; 3D mapping; large area mapping; digital terrain model; deep learning; MADNet; HRSC; CTX; HiRISE; Oxia Planum; ExoMars; Rosalind Franklin rover; landing site; planetary mapping; 3D reconstruction |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Space and Climate Physics |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10133676 |
