Jones, SB;
Nonnenmacher, TS;
Atkin, E;
Barker, GJ;
Basharina-Freshville, A;
Betancourt, C;
Boyd, SB;
... Wascko, MO; + view all
(2020)
Off-Axis Characterisation of the CERN T10 Beam for low Momentum Proton Measurements with a High Pressure Gas Time Projection Chamber.
Instruments
, 4
(3)
, Article 21. 10.3390/instruments4030021.
Preview |
Text

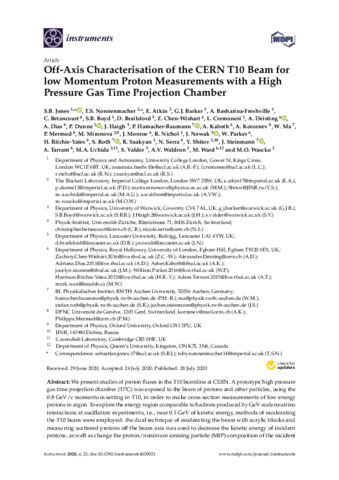

Basharina-Freshville_instruments-04-00021-v2.pdf - Published Version Download (11MB) | Preview |
Abstract
We present studies of proton fluxes in the T10 beamline at CERN. A prototype high pressure gas time projection chamber (TPC) was exposed to the beam of protons and other particles, using the 0.8 GeV/c momentum setting in T10, in order to make cross section measurements of low energy protons in argon. To explore the energy region comparable to hadrons produced by GeV-scale neutrino interactions at oscillation experiments, i.e., near 0.1 GeV of kinetic energy, methods of moderating the T10 beam were employed: the dual technique of moderating the beam with acrylic blocks and measuring scattered protons off the beam axis was used to decrease the kinetic energy of incident protons, as well as change the proton/minimum ionising particle (MIP) composition of the incident flux. Measurements of the beam properties were made using time of flight systems upstream and downstream of the TPC. The kinetic energy of protons reaching the TPC was successfully changed from ∼0.3 GeV without moderator blocks to less than 0.1 GeV with four moderator blocks (40 cm path length). The flux of both protons and MIPs off the beam axis was increased. The ratio of protons to MIPs vary as a function of the off-axis angle allowing for possible optimisation of the detector to select the type of required particles. Simulation informed by the time of flight measurements show that with four moderator blocks placed in the beamline, (5.6 ± 0.1) protons with energies below 0.1 GeV per spill traversed the active TPC region. Measurements of the beam composition and energy are presented.
| Type: | Article |
|---|---|
| Title: | Off-Axis Characterisation of the CERN T10 Beam for low Momentum Proton Measurements with a High Pressure Gas Time Projection Chamber |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.3390/instruments4030021 |
| Publisher version: | https://doi.org/10.3390/instruments4030021 |
| Language: | English |
| Additional information: | This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited |
| Keywords: | Neutrino physics; time projection chamber; high pressure; CERN; beam test; time of flight; off axis |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Physics and Astronomy |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10139021 |
