Martin, E;
Hurrell, A;
Choi, J;
Treeby, B;
(2021)
Quantifying the effects of standing waves within the skull for ultrasound mediated opening of the blood-brain-barrier.
In:
2021 IEEE International Ultrasonics Symposium (IUS).
IEEE: Xi'an, China.
Preview |
Text

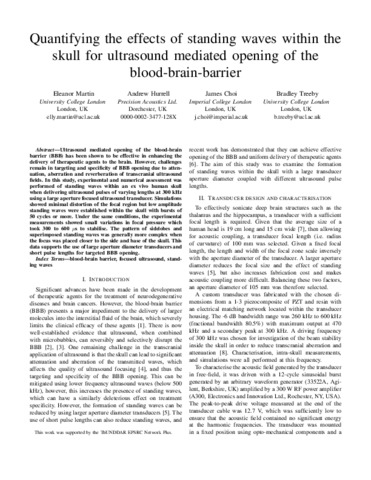

EMartin_IUS21.pdf - Accepted Version Download (1MB) | Preview |
Abstract
Ultrasound mediated opening of the blood-brain barrier (BBB) has been shown to be effective in enhancing the delivery of therapeutic agents to the brain. However, challenges remain in targeting and specificity of BBB opening due to attenuation, aberration and reverberation of transcranial ultrasound fields. In this study, experimental and numerical assessment was performed of standing waves within an ex vivo human skull when delivering ultrasound pulses of varying lengths at 300 kHz using a large aperture focused ultrasound transducer. Simulations showed minimal distortion of the focal region but low amplitude standing waves were established within the skull with bursts of 50 cycles or more. Under the same conditions, the experimental measurements showed small variations in focal pressure which took 300 to 600 µs to stabilise. The pattern of sidelobes and superimposed standing waves was generally more complex when the focus was placed closer to the side and base of the skull. This data supports the use of large aperture diameter transducers and short pulse lengths for targeted BBB opening.
| Type: | Proceedings paper |
|---|---|
| Title: | Quantifying the effects of standing waves within the skull for ultrasound mediated opening of the blood-brain-barrier |
| Event: | 2021 IEEE International Ultrasonics Symposium (IUS) |
| Dates: | 11 September 2021 - 16 September 2021 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/ius52206.2021.9593777 |
| Publisher version: | http://dx.doi.org/10.1109/IUS52206.2021.9593777 |
| Language: | English |
| Additional information: | This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions. |
| Keywords: | Ultrasonic imaging, Transducers, Ultrasonic variables measurement, Apertures, Skull, Distortion, Pressure measurement |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10140162 |
