Nikitichev, DI;
Barburas, A;
McPherson, K;
Mari, J-M;
West, SJ;
Desjardins, AE;
(2016)
Construction of 3-Dimensional Printed Ultrasound Phantoms With Wall-less Vessels.
Journal of Ultrasound in Medicine
, 35
(6)
pp. 1333-1339.
10.7863/ultra.15.06012.
Preview |
Text

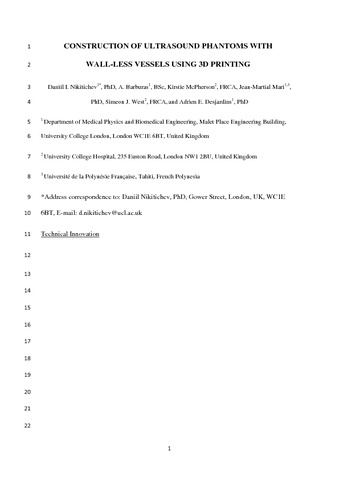

CONSTRUCTION OF ULTRASOUND PHANTOMS WITH WALL_Accepted.pdf Download (714kB) | Preview |
Abstract
Ultrasound phantoms are invaluable as training tools for vascular access procedures. We developed ultrasound phantoms with wall-less vessels using 3D printed chambers. Agar was used as a soft-tissue mimicking material, and the wall-less vessels were created with rods that were retracted after the agar was set. The chambers had integrated luer connectors to allow for fluid injections with clinical syringes. Several variations on this design are presented, which include branched and stenotic vessels. The results show that 3D printing can be well suited to the construction of wall-less ultrasound phantoms, with designs that can be readily customised and shared electronically.
| Type: | Article |
|---|---|
| Title: | Construction of 3-Dimensional Printed Ultrasound Phantoms With Wall-less Vessels |
| Location: | USA |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.7863/ultra.15.06012 |
| Publisher version: | http://dx.doi.org/10.7863/ultra.15.06012 |
| Language: | English |
| Additional information: | Copyright © 2016 by the American Institute of Ultrasound in Medicine. The published version of this article is available at http://dx.doi.org/10.7863/ultra.15.06012 in accordance with the publisher's guidelines at http://www.aium.org/jum/authorGuidelines.pdf. |
| Keywords: | tissue-mimicking material; 3-dimensional printing; ultrasound phantom; vascular access; vascular ultrasound; wall-less vessels |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1472123 |
