Stilli, A;
Wurdemann, HA;
Althoefer, K;
(2017)
A Novel Concept for Safe, Stiffness-Controllable Robot Links.
Soft Robotics
, 4
(1)
pp. 16-22.
10.1089/soro.2016.0015.
Preview |
Text

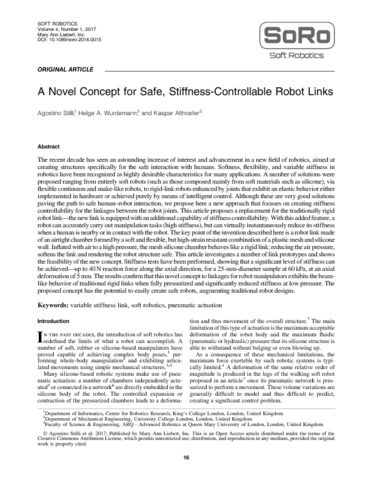

Wurdemann_soro.2016.0015.pdf - Published Version Download (658kB) | Preview |
Abstract
The recent decade has seen an astounding increase of interest and advancement in a new field of robotics, aimed at creating structures specifically for the safe interaction with humans. Softness, flexibility and variable stiffness in robotics have been recognised as highly desirable characteristics for many applications. A number of solutions were proposed ranging from entirely soft robots (such as those composed mainly from soft materials such as silicone), via flexible continuum and snake-like robots, to rigid-link robots enhanced by joints that exhibit an elastic behaviour either implemented in hardware or achieved purely by means of intelligent control. Although these are very good solutions paving the path to safe human-robot interaction, we propose here a new approach which focuses on creating stiffness controllability for the linkages between the robot joints. This paper proposes a replacement for the traditionally rigid robot link – the new link is equipped with an additional capability of stiffness controllability. With this added feature, a robot can accurately carry out manipulation tasks (high stiffness), but can virtually instantaneously reduce its stiffness when a human is nearby or in contact with the robot. The key point of the invention described here is a robot link made of an airtight chamber formed by a soft and flexible, but high-strain resistant combination of a plastic mesh and silicone wall. Inflated with air to a high pressure, the mesh-silicone chamber behaves like a rigid link; reducing the air pressure, softens the link and rendering the robot structure safe. This paper investigates a number of our link prototypes and shows the feasibility of the new concept. Stiffness tests have been performed, showing that a significant level of stiffness can be achieved - up to 40 N reaction force along the axial direction, for a 25 mm diameter sample at 60 kPa, at an axial deformation of 5 mm. The results confirm that this novel concept to linkages for robot manipulators exhibits the beam-like behaviour of traditional rigid links when fully pressurised and significantly reduced stiffness at low pressure. The proposed concept has the potential to easily create safe robots, augmenting traditional robot designs.
| Type: | Article |
|---|---|
| Title: | A Novel Concept for Safe, Stiffness-Controllable Robot Links |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1089/soro.2016.0015 |
| Publisher version: | https://doi.org/10.1089/soro.2016.0015 |
| Language: | English |
| Additional information: | Copyright © Agostino Stilli et al. 2017; Published by Mary Ann Liebert, Inc. This is an Open Access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. |
| Keywords: | stiffness-controllable, soft robotics, robot link |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Mechanical Engineering UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1485903 |
