Onishi, VC;
Carrero-Parreño, A;
Reyes-Labarta, JA;
Ruiz-Femenia, R;
Salcedo-Díaz, R;
Fraga, ES;
Caballero, JA;
(2017)

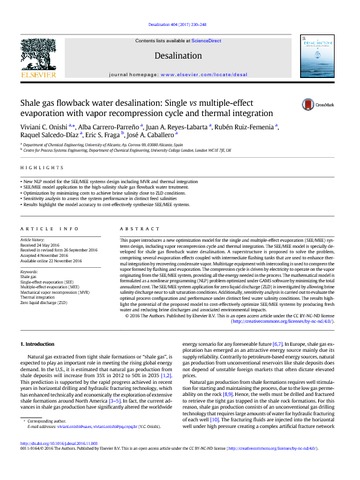

Shale Gas Flowback Water Desalination: Single vs Multiple-effect evaporation with Vapor Recompression Cycle and Thermal Integration.
Desalination
, 404
pp. 230-248.
10.1016/j.desal.2016.11.003.
Preview |
Text
Onishi_Shale_Gas_Flowback_VoR.pdf - Published Version Download (2MB) | Preview |
Abstract
This paper introduces a new optimization model for the single and multiple-effect evaporation (SEE/MEE) systems design, including vapor recompression cycle and thermal integration. The SEE/MEE model is specially developed for shale gas flowback water desalination. A superstructure is proposed to solve the problem, comprising several evaporation effects coupled with intermediate flashing tanks that are used to enhance thermal integration by recovering condensate vapor. Multistage equipment with intercooling is used to compress the vapor formed by flashing and evaporation. The compression cycle is driven by electricity to operate on the vapor originating from the SEE/MEE system, providing all the energy needed in the process. The mathematical model is formulated as a nonlinear programming (NLP) problem optimized under GAMS software by minimizing the total annualized cost. The SEE/MEE system application for zero liquid discharge (ZLD) is investigated by allowing brine salinity discharge near to salt saturation conditions. Additionally, sensitivity analysis is carried out to evaluate the optimal process configuration and performance under distinct feed water salinity conditions. The results highlight the potential of the proposed model to cost-effectively optimize SEE/MEE systems by producing fresh water and reducing brine discharges and associated environmental impacts.
| Type: | Article |
|---|---|
| Title: | Shale Gas Flowback Water Desalination: Single vs Multiple-effect evaporation with Vapor Recompression Cycle and Thermal Integration |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1016/j.desal.2016.11.003 |
| Publisher version: | http://dx.doi.org/10.1016/j.desal.2016.11.003 |
| Language: | English |
| Additional information: | Copyright © 2016 The Authors. Published by Elsevier B.V. This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/). |
| Keywords: | Shale gas; Single-effect evaporation (SEE); Multiple-effect evaporation (MEE); Mechanical vapor recompression (MVR); Thermal integration; Zero liquid discharge (ZLD) |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1529206 |
