Panagiotopoulou, VC;
Tucker, SK;
Whittaker, RK;
Hothi, HS;
Henckel, J;
Leong, JJ;
Ember, T;
... Hart, AJ; + view all
(2017)

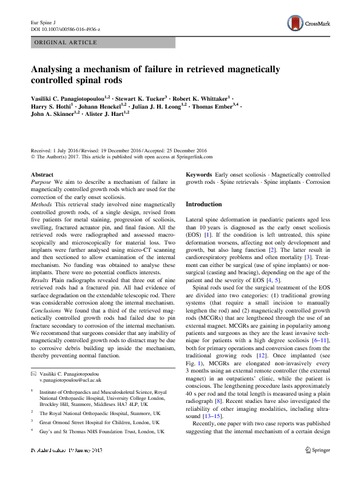

Analysing a mechanism of failure in retrieved magnetically controlled spinal rods.
European Spine Journal
10.1007/s00586-016-4936-z.
Preview |
Text
Hart_art%253A10.1007%252Fs00586-016-4936-z.pdf Download (14MB) | Preview |
Abstract
PURPOSE: We aim to describe a mechanism of failure in magnetically controlled growth rods which are used for the correction of the early onset scoliosis. METHODS: This retrieval study involved nine magnetically controlled growth rods, of a single design, revised from five patients for metal staining, progression of scoliosis, swelling, fractured actuator pin, and final fusion. All the retrieved rods were radiographed and assessed macroscopically and microscopically for material loss. Two implants were further analysed using micro-CT scanning and then sectioned to allow examination of the internal mechanism. No funding was obtained to analyse these implants. There were no potential conflicts interests. RESULTS: Plain radiographs revealed that three out of nine retrieved rods had a fractured pin. All had evidence of surface degradation on the extendable telescopic rod. There was considerable corrosion along the internal mechanism. CONCLUSIONS: We found that a third of the retrieved magnetically controlled growth rods had failed due to pin fracture secondary to corrosion of the internal mechanism. We recommend that surgeons consider that any inability of magnetically controlled growth rods to distract may be due to corrosive debris building up inside the mechanism, thereby preventing normal function.
| Type: | Article |
|---|---|
| Title: | Analysing a mechanism of failure in retrieved magnetically controlled spinal rods |
| Location: | Germany |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1007/s00586-016-4936-z |
| Publisher version: | http://doi.org/10.1007/s00586-016-4936-z |
| Language: | English |
| Additional information: | © The Author(s) 2017. This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. |
| Keywords: | Corrosion, Early onset scoliosis, Magnetically controlled growth rods, Spine implants, Spine retrievals |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Medical Sciences UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Medical Sciences > Div of Surgery and Interventional Sci UCL > Provost and Vice Provost Offices > School of Life and Medical Sciences > Faculty of Medical Sciences > Div of Surgery and Interventional Sci > Department of Ortho and MSK Science |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1537440 |
