Jayawardana, K;
Ovenden, NC;
Cottenden, A;
(2017)
Quantifying the frictional forces between skin and nonwoven fabrics.
Frontiers in Physiology
, 8
, Article 107. 10.3389/fphys.2017.00107.
Preview |
Text

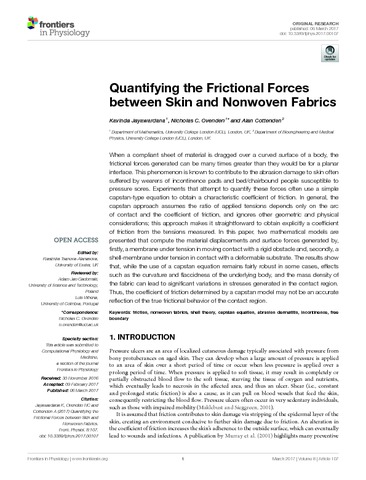

Jayawardana_Quantifying_frictional_forces.pdf - Published Version Download (2MB) | Preview |
Abstract
When a compliant sheet of material is dragged over a curved surface of a body, the frictional forces generated can be many times greater than they would be for a planar interface. This phenomenon is known to contribute to the abrasion damage to skin often suffered by wearers of incontinence pads and bed/chairbound people susceptible to pressure sores. Experiments that attempt to quantify these forces often use a simple capstan-type equation to obtain a characteristic coefficient of friction. In general, the capstan approach assumes the ratio of applied tensions depends only on the arc of contact and the coefficient of friction, and ignores other geometric and physical considerations; this approach makes it straightforward to obtain explicitly a coefficient of friction from the tensions measured. In this paper, two mathematical models are presented that compute the material displacements and surface forces generated by, firstly, a membrane under tension in moving contact with a rigid obstacle and, secondly, a shell-membrane under tension in contact with a deformable substrate. The results show that, while the use of a capstan equation remains fairly robust in some cases, effects such as the curvature and flaccidness of the underlying body, and the mass density of the fabric can lead to significant variations in stresses generated in the contact region. Thus, the coefficient of friction determined by a capstan model may not be an accurate reflection of the true frictional behavior of the contact region.
| Type: | Article |
|---|---|
| Title: | Quantifying the frictional forces between skin and nonwoven fabrics |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.3389/fphys.2017.00107 |
| Publisher version: | https://doi.org/10.3389/fphys.2017.00107 |
| Language: | English |
| Additional information: | Copyright © 2017 Jayawardana, Ovenden and Cottenden. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY) (http://creativecommons.org/licenses/by/4.0/). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms. |
| Keywords: | friction, nonwoven fabrics, shell theory, capstan equation, abrasion dermatitis, incontinence, free boundary |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Med Phys and Biomedical Eng UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Mathematics |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1540619 |
