Mahgoub, H;
Gilchrist, J;
Fearn, T;
Strlic, M;
(2017)
Analytical robustness of quantitative NIR chemical imaging for Islamic paper characterization.
In:
Optics for Arts, Architecture, and Archaeology VI.
(pp. 103310P-1).
SPIE
Preview |
Text

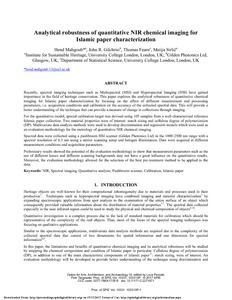

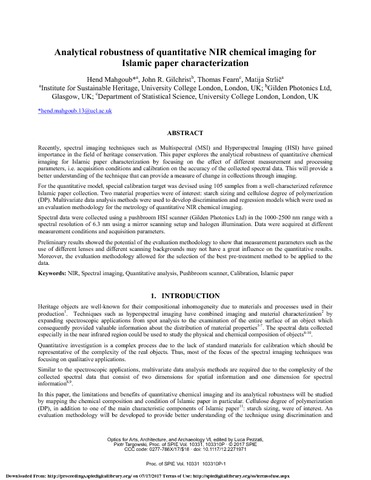

103310P.pdf - Published Version Download (555kB) | Preview |
Abstract
Recently, spectral imaging techniques such as Multispectral (MSI) and Hyperspectral Imaging (HSI) have gained importance in the field of heritage conservation. This paper explores the analytical robustness of quantitative chemical imaging for Islamic paper characterization by focusing on the effect of different measurement and processing parameters, i.e. acquisition conditions and calibration on the accuracy of the collected spectral data. This will provide a better understanding of the technique that can provide a measure of change in collections through imaging. For the quantitative model, special calibration target was devised using 105 samples from a well-characterized reference Islamic paper collection. Two material properties were of interest: starch sizing and cellulose degree of polymerization (DP). Multivariate data analysis methods were used to develop discrimination and regression models which were used as an evaluation methodology for the metrology of quantitative NIR chemical imaging. Spectral data were collected using a pushbroom HSI scanner (Gilden Photonics Ltd) in the 1000-2500 nm range with a spectral resolution of 6.3 nm using a mirror scanning setup and halogen illumination. Data were acquired at different measurement conditions and acquisition parameters. Preliminary results showed the potential of the evaluation methodology to show that measurement parameters such as the use of different lenses and different scanning backgrounds may not have a great influence on the quantitative results. Moreover, the evaluation methodology allowed for the selection of the best pre-treatment method to be applied to the data. © (2017) COPYRIGHT Society of Photo-Optical Instrumentation Engineers (SPIE). Downloading of the abstract is permitted for personal use only.
| Type: | Proceedings paper |
|---|---|
| Title: | Analytical robustness of quantitative NIR chemical imaging for Islamic paper characterization |
| Event: | Optical Metrology 2017 |
| Location: | Munich, Germany |
| Dates: | 26 June 2017 - 29 June 2017 |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1117/12.2271971 |
| Publisher version: | http://dx.doi.org/10.1117/12.2271971 |
| Language: | English |
| Additional information: | This version is the version of record. For information on re-use, please refer to the publisher’s terms and conditions. |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Dept of Statistical Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of the Built Environment UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of the Built Environment > Bartlett School Env, Energy and Resources |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1565198 |
