Burdet, N; Shi, X; Clark, JN; Huang, X; Harder, R; Robinson, I; (2017) Bragg projection ptychography on niobium phase domains. Physical Review B , 96 (1) , Article 014109. 10.1103/PhysRevB.96.014109.

Preview

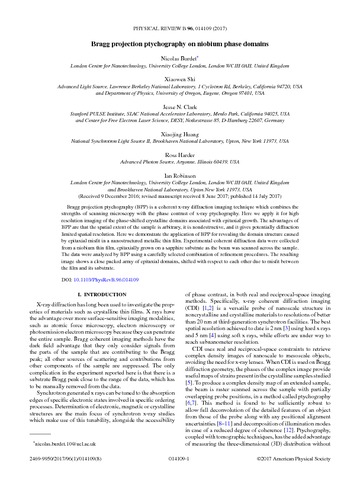

Text Burdet_Bragg_projection_ptychography.pdf - Published Version Download (2MB) | Preview

Abstract

Bragg projection ptychography (BPP) is a coherent x-ray diffraction imaging technique which combines the strengths of scanning microscopy with the phase contrast of x-ray ptychography. Here we apply it for high resolution imaging of the phase-shifted crystalline domains associated with epitaxial growth. The advantages of BPP are that the spatial extent of the sample is arbitrary, it is nondestructive, and it gives potentially diffraction limited spatial resolution. Here we demonstrate the application of BPP for revealing the domain structure caused by epitaxial misfit in a nanostructured metallic thin film. Experimental coherent diffraction data were collected from a niobium thin film, epitaxially grown on a sapphire substrate as the beam was scanned across the sample. The data were analyzed by BPP using a carefully selected combination of refinement procedures. The resulting image shows a close packed array of epitaxial domains, shifted with respect to each other due to misfit between the film and its substrate.
