Shamsudduha, M;
Taylor, RG;
Jones, D;
Longuevergne, L;
Owor, M;
Tindimugaya, C;
(2017)
Recent changes in terrestrial water storage in the Upper Nile Basin: an evaluation of commonly used gridded GRACE products.
Hydrology And Earth System Sciences
, 21
(9)
pp. 4533-4549.
10.5194/hess-21-4533-2017.
Preview |
Text

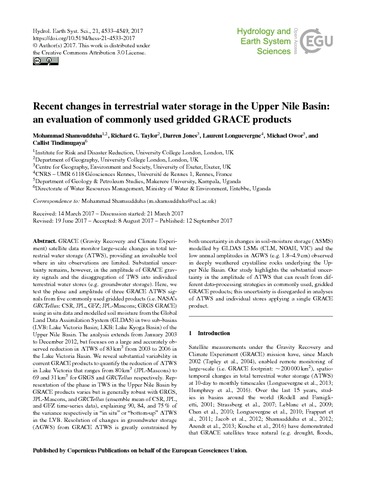

Shamsudduha-M_recent changes in terrestrial water storage in the Upper Nile Basin_.pdf - Published Version Download (1MB) | Preview |
Abstract
GRACE (Gravity Recovery and Climate Experiment) satellite data monitor large-scale changes in total terrestrial water storage (ΔTWS), providing an invaluable tool where in situ observations are limited. Substantial uncertainty remains, however, in the amplitude of GRACE gravity signals and the disaggregation of TWS into individual terrestrial water stores (e.g. groundwater storage). Here, we test the phase and amplitude of three GRACE ΔTWS signals from five commonly used gridded products (i.e. NASA's GRCTellus: CSR, JPL, GFZ; JPL-Mascons; GRGS GRACE) using in situ data and modelled soil moisture from the Global Land Data Assimilation System (GLDAS) in two sub-basins (LVB: Lake Victoria Basin; LKB: Lake Kyoga Basin) of the Upper Nile Basin. The analysis extends from January 2003 to December 2012, but focuses on a large and accurately observed reduction in ΔTWS of 83 km3 from 2003 to 2006 in the Lake Victoria Basin. We reveal substantial variability in current GRACE products to quantify the reduction of ΔTWS in Lake Victoria that ranges from 80 km3 (JPL-Mascons) to 69 and 31 km3 for GRGS and GRCTellus respectively. Representation of the phase in TWS in the Upper Nile Basin by GRACE products varies but is generally robust with GRGS, JPL-Mascons, and GRCTellus (ensemble mean of CSR, JPL, and GFZ time-series data), explaining 90, 84, and 75 % of the variance respectively in "in situ" or "bottom-up" ΔTWS in the LVB. Resolution of changes in groundwater storage (ΔGWS) from GRACE ΔTWS is greatly constrained by both uncertainty in changes in soil-moisture storage (ΔSMS) modelled by GLDAS LSMs (CLM, NOAH, VIC) and the low annual amplitudes in ΔGWS (e.g. 1.8–4.9 cm) observed in deeply weathered crystalline rocks underlying the Upper Nile Basin. Our study highlights the substantial uncertainty in the amplitude of ΔTWS that can result from different data-processing strategies in commonly used, gridded GRACE products; this uncertainty is disregarded in analyses of ΔTWS and individual stores applying a single GRACE product.
| Type: | Article |
|---|---|
| Title: | Recent changes in terrestrial water storage in the Upper Nile Basin: an evaluation of commonly used gridded GRACE products |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.5194/hess-21-4533-2017 |
| Publisher version: | http://doi.org/10.5194/hess-21-4533-2017 |
| Language: | English |
| Additional information: | This work is licensed under a Creative Commons Attribution 3.0 License. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit http://creativecommons.org/licenses/by/3.0/ |
| Keywords: | Science & Technology, Physical Sciences, Geosciences, Multidisciplinary, Water Resources, Geology, LAND-SURFACE MODEL, LAKE VICTORIA, GROUNDWATER DEPLETION, MASCON SOLUTION, SATELLITE DATA, BALANCE MODEL, EAST-AFRICA, RAINFALL, UGANDA, LEVEL |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Maths and Physical Sciences > Inst for Risk and Disaster Reduction UCL > Provost and Vice Provost Offices > UCL SLASH UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS UCL > Provost and Vice Provost Offices > UCL SLASH > Faculty of S&HS > Dept of Geography |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/1575302 |
