Probing the Structure-Performance Relationship of Lithium-Ion Battery Cathodes Using Pore-Networks Extracted from Three-Phase Tomograms

Khan, ZA; Salaberri, PAG; Heenan, TMM; Jervis, R; Shearing, PR; Brett, D; Elkamel, A; (2020) Probing the Structure-Performance Relationship of Lithium-Ion Battery Cathodes Using Pore-Networks Extracted from Three-Phase Tomograms. Journal of The Electrochemical Society , 167 (4) , Article 040528. 10.1149/1945-7111/ab7bd8. Green open access

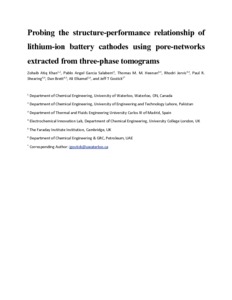

[thumbnail of Heenan_Manuscript-Rev2.1_LIB_poreNetwork.pdf]
Preview
Text
Heenan_Manuscript-Rev2.1_LIB_poreNetwork.pdf - Accepted Version

Download (2MB) | Preview

Abstract

Pore-scale simulations of Li-ion battery electrodes were conducted using both pore-network modeling and direct numerical simulation. Ternary tomographic images of NMC811 cathodes were obtained and used to create the pore-scale computational domains. A novel network extraction method was developed to manage the extraction of N-phase networks which was used to extract all three phases of NMC-811 electrode along with their interconnections Pore network results compared favorably with direct numerical simulations (DNS) in terms of effective transport properties of each phase but were obtained in significantly less time. Simulations were then conducted with combined diffusion-reaction to simulate the limiting current behavior. It was found that when considering only ion and electron transport, the electrode structure could support current densities about 300 times higher than experimentally observed values. Additional case studies were conducted to illustrate the necessity of ternary images which allow separate consideration of carbon binder domain and active material. The results showed a 24.4% decrease in current density when the carbon binder was treated as a separate phase compared to lumping the CBD and active material into a single phase. The impact of nanoporosity in the carbon binder phase was also explored and found to enhance the reaction rate by 16.8% compared to solid binder. In addition, the developed technique used 58 times larger domain volume than DNS which opens up the possibility of modelling much larger tomographic data sets, enabling representative areas of typically inhomogeneous battery electrodes to be modelled accurately, and proposes a solution to the conflicting needs of high-resolution imaging and large volumes for image-based modelling. For the first time, three-phase pore network modelling of battery electrodes has been demonstrated and evaluated, opening the path towards a new modelling framework for lithium ion batteries.

Type: Article
Title: Probing the Structure-Performance Relationship of Lithium-Ion Battery Cathodes Using Pore-Networks Extracted from Three-Phase Tomograms
Open access status: An open access version is available from UCL Discovery
DOI: 10.1149/1945-7111/ab7bd8
Publisher version: https://doi.org/10.1149/1945-7111/ab7bd8
Language: English
Additional information: This version is the author accepted manuscript. For information on re-use, please refer to the publisher’s terms and conditions.
Keywords: pore network modelling, porous media, X-ray computed tomography, electrode microstructure, lithium-ion battery
UCL classification: UCL
UCL > Provost and Vice Provost Offices > UCL BEAMS
UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science
UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering
URI: https://discovery-pp.ucl.ac.uk/id/eprint/10093734
