Yi, W;
Li, Z;
Zhou, Z;
Sillekens, E;
Gerard, T;
Deakin, C;
Ferreira, FM;
... Killey, RI; + view all
(2021)
Frequency-modulated Chirp Signals for Single-photodiode Based Coherent LiDAR System.
Journal of Lightwave Technology
p. 1.
10.1109/jlt.2021.3081255.
(In press).
Preview |
Text

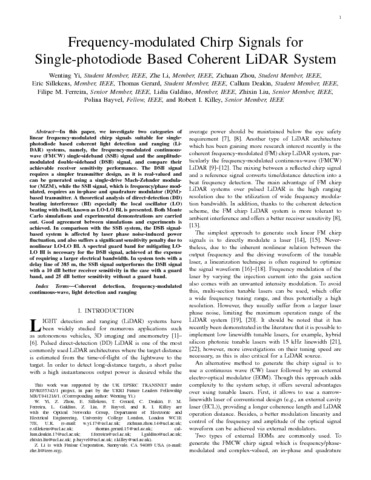

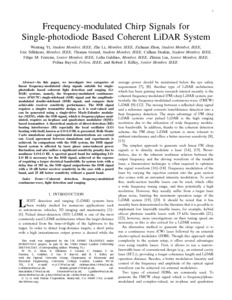

JLT_manuscript-2.pdf - Accepted Version Download (2MB) | Preview |
Abstract
In this paper, we investigate two categories of linear frequency-modulated chirp signals suitable for single-photodiode based coherent light detection and ranging (LiDAR) systems, namely, the frequency-modulated continuous-wave (FMCW) single-sideband (SSB) signal and the amplitude-modulated double-sideband (DSB) signal, and compare their achievable receiver sensitivity performance. The DSB signal requires a simpler transmitter design, as it is real-valued and can be generated using a single-drive Mach-Zehnder modulator (MZM), while the SSB signal, which is frequency/phase modulated, requires an in-phase and quadrature modulator (IQM)-based transmitter. A theoretical analysis of direct-detection (DD) beating interference (BI) especially the local oscillator (LO) beating with itself, known as LO-LO BI, is presented. Both Monte Carlo simulations and experimental demonstrations are carried out. Good agreement between simulations and experiments is achieved. In comparison with the SSB system, the DSB signal-based system is affected by laser phase noise-induced power fluctuation, and also suffers a significant sensitivity penalty due to nonlinear LO-LO BI. A spectral guard band for mitigating LO-LO BI is necessary for the DSB signal, achieved at the expense of requiring a larger electrical bandwidth. In system tests with a delay line of 385 m, the SSB signal outperforms the DSB signal with a 10 dB better receiver sensitivity in the case with a guard band, and 25 dB better sensitivity without a guard band.
| Type: | Article |
|---|---|
| Title: | Frequency-modulated Chirp Signals for Single-photodiode Based Coherent LiDAR System |
| Open access status: | An open access version is available from UCL Discovery |
| DOI: | 10.1109/jlt.2021.3081255 |
| Publisher version: | https://doi.org/10.1109/JLT.2021.3081255 |
| Language: | English |
| Additional information: | © 2021 IEEE. Published under a Creative Commons License (https://creativecommons.org/licenses/by/4.0/). |
| Keywords: | Coherent detection, frequency-modulated continuous-wave, light detection and ranging |
| UCL classification: | UCL UCL > Provost and Vice Provost Offices > UCL BEAMS UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Chemical Engineering UCL > Provost and Vice Provost Offices > UCL BEAMS > Faculty of Engineering Science > Dept of Electronic and Electrical Eng |
| URI: | https://discovery-pp.ucl.ac.uk/id/eprint/10128752 |
